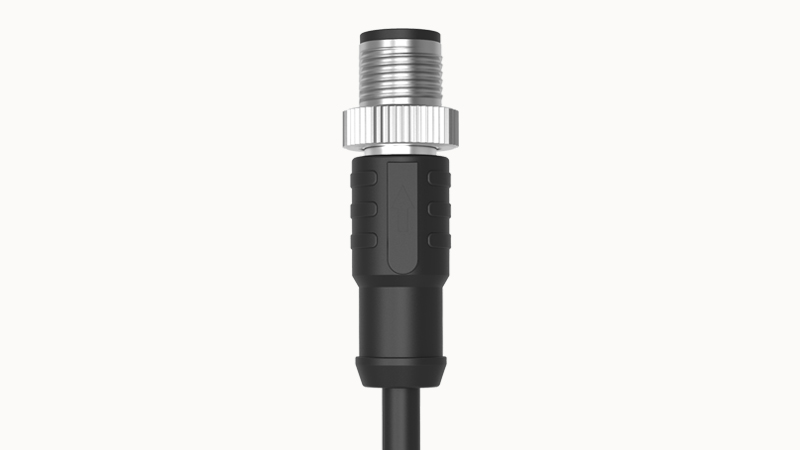

DEGSON PMSH-M12A-06P-MM-SL8B01

Conductor material

Tinned copper

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Number of potentials

6

IP class

IP68

Ambient temperature

-25℃...80℃

Flame retardant

Comply with UL 758/1581 FT2 standard

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Conductor insulation material

PE

Outer sheath, material

PU

Cable outer diameter D

5.4 ±0.2mm

Thickness, insulation

0.6mm

Wire color

1 White 2 Brown 3 Green 4 Yellow 6 Pink 7 Blue knitting

Core diameter (including insulation layer)

1.10±0.05mm

Wire structure Signal wire

7/0.20mm²

AWG signal wire

24AWG

Cross section

0.25mm²

UL AWM form

UL20549

Cable type(abbreviation)

PUR

Cable Types

PUR Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Fixture body material

TPU

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Insulation resistance

≥ 100 MΩ

Cable length

1m

Halogen free

无

Rated current

2A
