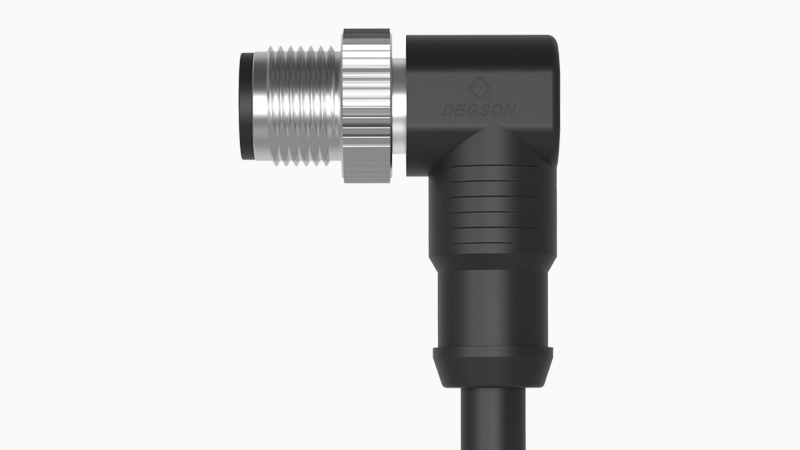

DEGSON PMSH-M12A-12P-MM-SR8D01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP68

Number of potentials

12

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Thickness, insulation

0.6mm

Cable outer diameter D

6.5 ±0.2mm

Outer sheath, material

PU

Conductor insulation material

PE

Conductor resistance

Maximum 150Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Flame retardant

Comply with UL 758/1581 FT2 standard

Wire color

1 Brown 2 Blue 3 White 4 Green 5 Pink 6 Yellow 7 Black 8 Gray 9 Red 10 Violet 11Gray/Pink 12Red/Blue knitting

Core diameter (including insulation layer)

1.00±0.05mm

Wire structure Signal wire

7/0.16mm²

AWG signal wire

26AWG

Cross section

0.14mm²

UL AWM form

UL20549

Cable type(abbreviation)

PUR

Cable Types

PUR Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Fixture body material

TPU

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Torque

0.4 Nm

Insulation resistance

≥ 100 MΩ

Cable length

1m

Halogen free

无

Rated current

1.5A
