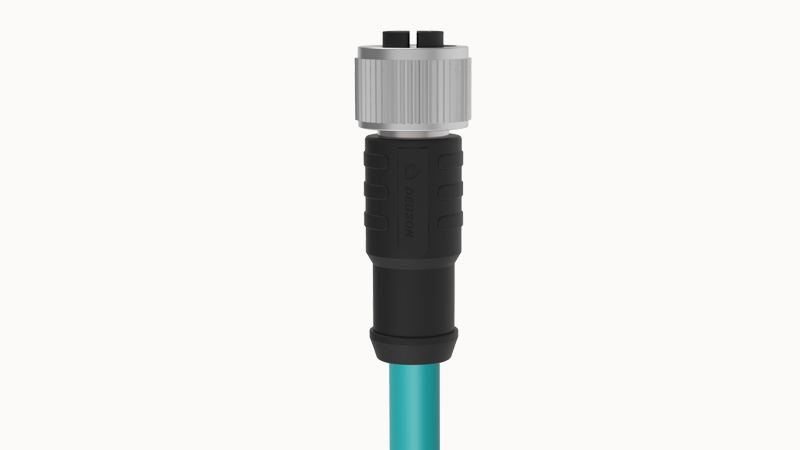

DEGSON PMSH-M12X-08P-FF-SL7X01

Name: PMSH-M12X-08P-FF-SL7X01
Brand: DEGSON
SKU: 637-PMSH-M12X-08P-FF-SL7X01
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

PMSH-M12X-08P-FF-SL7X01

品牌

DEGSON

utmel 编号

637-PMSH-M12X-08P-FF-SL7X01

商品类别

圆形连接器

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

Sensor/Actuator Cable,Cat 6A,blue,Female plug,Straight,M12,Coding X,Shielded,Trimming cable end,Cable Cable length:1m

起订量

1最小包装量--

添加到询价列表

PMSH-M12X-08P-FF-SL7X01 DEGSON Sensor/Actuator Cable,Cat 6A,blue,Female plug,Straight,M12,Coding X,Shielded,Trimming cable end,Cable Cable length:1m

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

PMSH-M12X-08P-FF-SL7X01详情

技术参数

PDF文档

DEGSON PMSH-M12X-08P-FF-SL7X01重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Conductor material

Bare copper
Ambient temperature

-25℃...75℃
IP class

IP67
Number of potentials

8
Error-proof coding

X-Code
Overvoltage level

Ⅱ
Pollution level

3
Insertion and pullout cycle

≥ 100
Torque

0.4 Nm
Flammability rating ,in line with UL94

V0
Contact Materials

CuZn
Material of contact surface

Au
Contact carrier material

PA
Fixture body material

TPU
Coil material

Zinc alloy, nickel plated
Sealing material

Silicon
Standards/specifications

IEC 61076-2-109
Cable Types

CAT6A S/FTP LSZH Blue
Cable type(abbreviation)

CAT6A S/FTP
Cross section

0.14mm²
AWG signal wire

26AWG
Wire structure Signal wire

7/0.16mm²
Core diameter (including insulation layer)

1.00±0.05mm
Wire color

1.White 2.Orange 3.White 4.Green 5.White 6.Brown 7.White 8.Blue knitting
Thickness, insulation

0.25mm
Cable outer diameter D

6.5 ±0.3mm
Conductor insulation material

Foam PE
Conductor resistance

14.8ohm/100M
Flame retardant

IEC60332-1
Insulation resistance

≥ 100 MΩ
Cable length

1m
Halogen free

无
Rated current

0.5A
