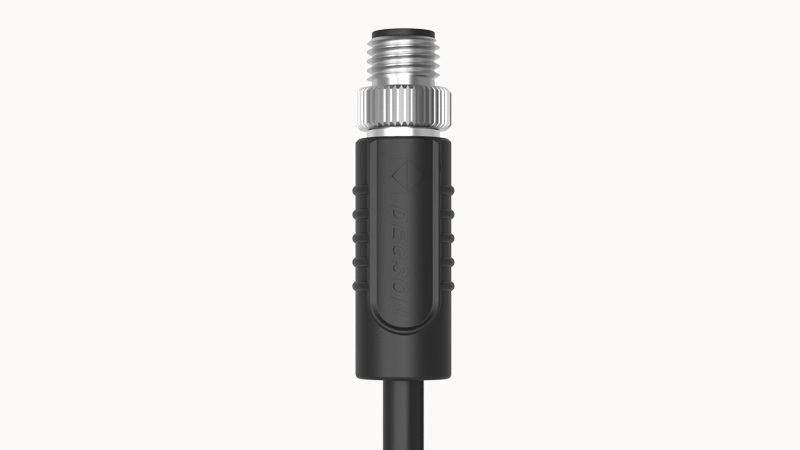

DEGSON PMSH-M8A-06P-MM-SL7C01

Conductor material

Tinned copper

Other protection functions

Anti-UV

Special attributes

Silicone-free

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 150Ω/km (at 20 °C) )

Conductor insulation material

PVC

Outer sheath, material

PVC

Bending radius

50.8mm

Minimum bend radius ,mobile installation

10*OD

Minimum bend radius ,fixed installation

5*OD

Cable outer diameter D

5.2 ±0.2mm

Thickness, insulation

0.23mm

Wire color

1 Brown 2 White 3 Blue 4 Black 5 Gray 6 Pink knitting

Core diameter (including insulation layer)

1.00±0.05mm

Wire structure Signal wire

7/0.16mm²

AWG signal wire

26AWG

Cross section

0.14mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Cable Types

PVC Black

Standards/specifications

IEC 61076-2-104

Sealing material

Silicon

Coil material

Copper alloy, nickel plated

Fixture body material

TPU

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

6

IP class

IP67

Ambient temperature

-25℃...80℃

Insulation resistance

≥ 20 MΩ

Cable length

1m

Halogen free

有

Rated current

1.5A
