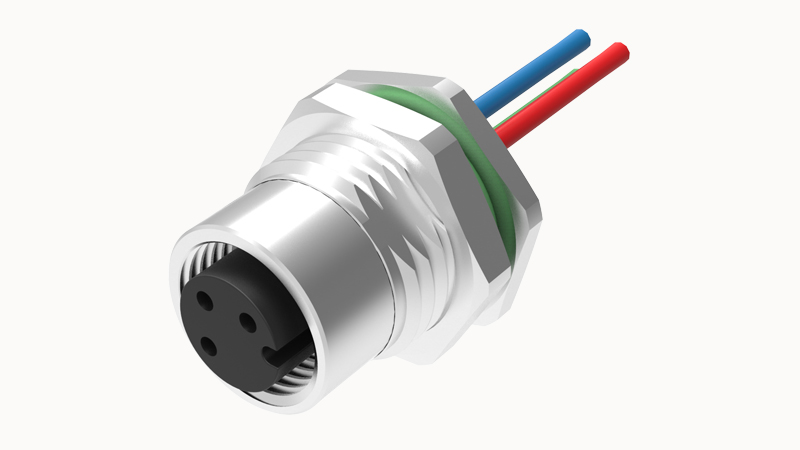

DEGSON SD-M12A-03P-FF-SF8B50

Conductor material

Tinned copper

Wire structure Signal wire

17/0.16mm²

AWG signal wire

22AWG

Cross section

0.34mm²

UL AWM form

UL1061

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Type of installation

Rear board installation

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

3

IP class

IP68

Ambient temperature

-25℃...80℃

Core diameter (including insulation layer)

1.30±0.05mm

Wire color

1 Brown 3 Blue 4 Black

Thickness, insulation

0.203mm

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Insulation resistance

≥ 20 MΩ

Cable length

0.5m

Rated current

4A

Connection method

Single wire
