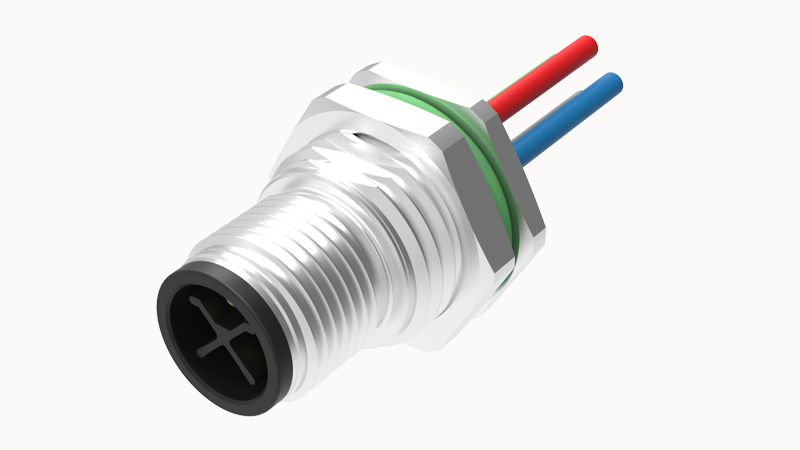

DEGSON SD-M12S-04P-MM-SF8A50

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP68

Number of potentials

4

Error-proof coding

S-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Type of installation

Rear board installation

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-111

UL AWM form

UL1015

Cross section

1.31mm²

AWG signal wire

16AWG

Wire structure Signal wire

26/0.254mm²

Core diameter (including insulation layer)

3.1±0.05mm

Wire color

1 Black1 2 Black2 3 Black3 PE Yellow /Green

Thickness, insulation

0.73mm

Conductor insulation material

PVC

Conductor resistance

Maximum 14.6Ω/km (at 20 °C) )

Nominal cable voltage

600V

Cable test voltage

2000V

Insulation resistance

10MΩ

Cable length

0.5m

Rated current

12A

Connection method

Single wire
