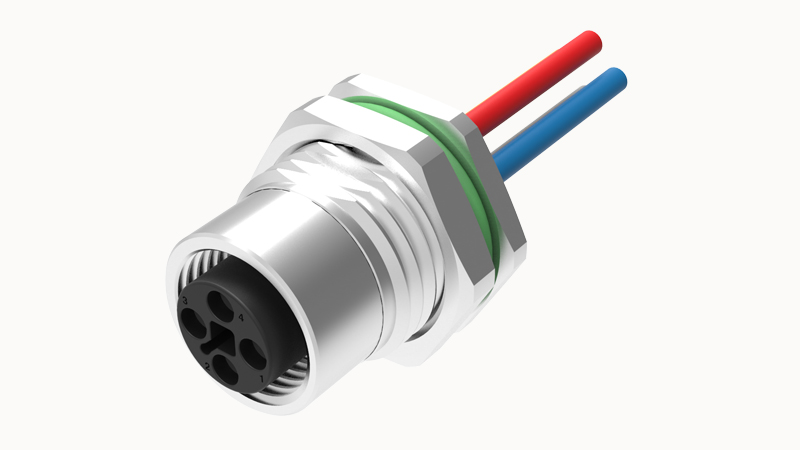

DEGSON SD-M12T-04P-FF-SF8A50

Conductor material

Tinned copper

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 14.6Ω/km (at 20 °C) )

Conductor insulation material

PVC

Thickness, insulation

0.20mm

Wire color

1 Brown 2 White 3 Blue 4 Black

Core diameter (including insulation layer)

2.1±0.05mm

Wire structure Signal wire

26/0.254mm²

AWG signal wire

16AWG

Cross section

1.31mm²

UL AWM form

UL1061

Standards/specifications

IEC 61076-2-111

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Type of installation

Rear board installation

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

T-Code

Number of potentials

4

IP class

IP68

Ambient temperature

-25℃...80℃

Insulation resistance

10MΩ

Cable length

0.5m

Rated current

12A

Connection method

Single wire
