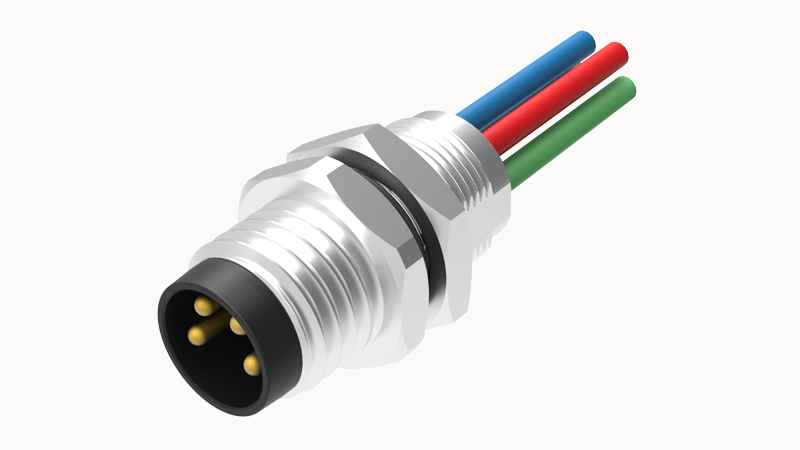

DEGSON SD-M8A-04P-MM-SH7B50

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP67

Number of potentials

4

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.3 Nm ... 0.4 Nm

Type of installation

Installation in front of the board

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-104

UL AWM form

UL1061

Cross section

0.25mm²

Wire structure Signal wire

7/0.20mm²

Core diameter (including insulation layer)

1.10±0.05mm

Wire color

1 Brown 2 White 3 Blue 4 Black

Thickness, insulation

0.18mm

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Insulation resistance

≥ 20 MΩ

Cable length

0.5m

Rated current

3A

Connection method

Single wire
