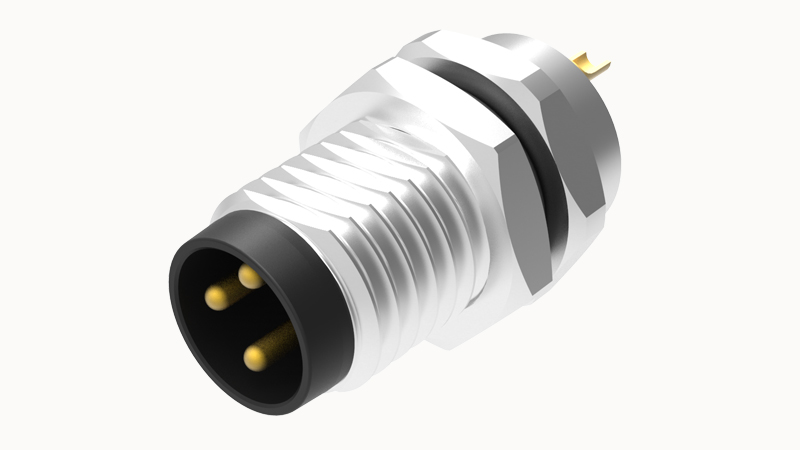

DEGSON SD-M8A-06P-MM-SF7003

Ambient temperature

-40℃...105℃

IP class

IP67

Number of potentials

6

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.3 Nm ... 0.4 Nm

Type of installation

Rear board installation

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-104

Insulation resistance

≥ 100 MΩ

Rated current

1.5A

Connection method

Soldering
