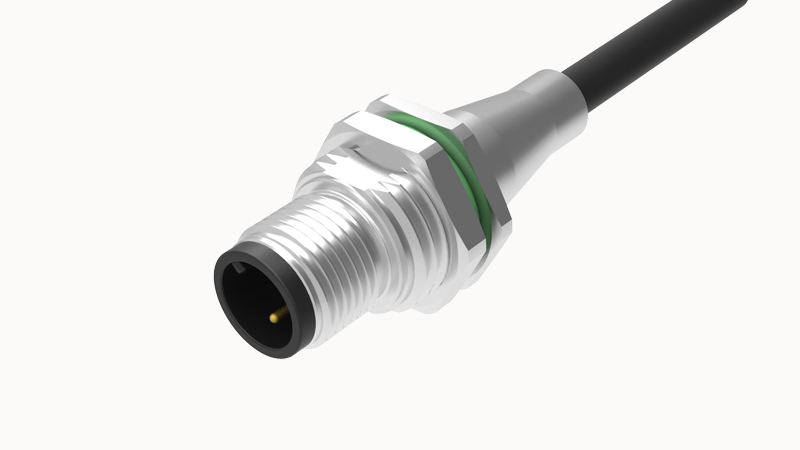

DEGSON SESH-M12A-03P-MM-SM8A01

Conductor material

Tinned copper

Material of contact surface

Au

Contact carrier material

PA

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-101

Cable Types

PVC Black

Cable type(abbreviation)

PVC

UL AWM form

UL2517

Cross section

0.34mm²

AWG signal wire

22AWG

Wire structure Signal wire

17/0.16mm²

Core diameter (including insulation layer)

1.30±0.05mm

Wire color

1 Brown 3 Blue 4 Black

Thickness, insulation

0.6mm

Cable outer diameter D

5.0 ±0.2mm

Outer sheath, material

PVC

Conductor insulation material

PVC

Conductor resistance

Maximum 59.4Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Flame retardant

Comply with UL 758/1581 FT1 standard

Sealing cap

CAP-M12-FP-8002

Packing unit

100

Products weight (without packaging)

/

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Type of installation

Rear board installation

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

3

IP class

IP68

Ambient temperature

-40℃...80℃

Insulation resistance

≥ 100 MΩ

Halogen free

有

Rated current

4A;250V
