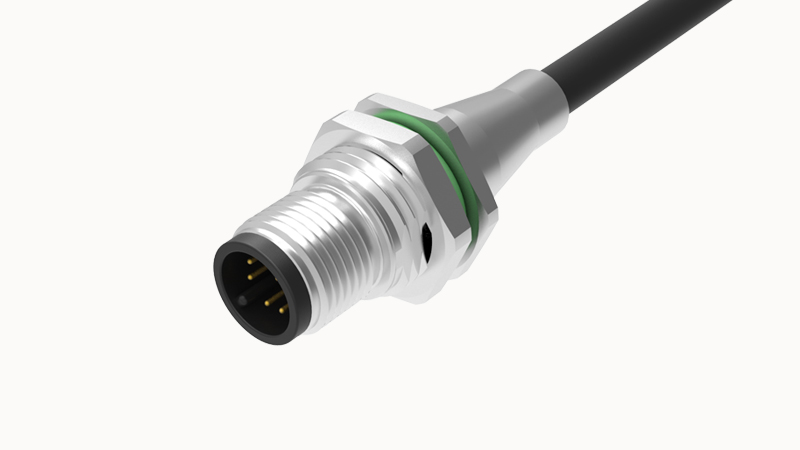

DEGSON SESH-M12A-10P-MM-SM8A01

Conductor material

Tinned copper

Wire color

1 Brown 2 Blue 3 White 4 Green 5 Pink 6 Yellow 7 Black 8 Gray 9 Red 10 Violet

Thickness, insulation

0.6mm

Cable outer diameter D

5.0 ±0.2mm

Outer sheath, material

PVC

Conductor insulation material

PVC

Conductor resistance

Maximum 59.4Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Flame retardant

Comply with UL 758/1581 FT1 standard

Sealing cap

CAP-M12-FP-8002

Packing unit

100

Products weight (without packaging)

/

Core diameter (including insulation layer)

1.30±0.05mm

Wire structure Signal wire

17/0.16mm²

AWG signal wire

26AWG

Cross section

0.14mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Cable Types

PVC Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Type of installation

Rear board installation

Torque

0.4 Nm

Insertion and pullout cycle

≥ 100

Pollution level

3

Overvoltage level

Ⅱ

Error-proof coding

A-Code

Number of potentials

10

IP class

IP68

Ambient temperature

-40℃...80℃

Insulation resistance

≥ 100 MΩ

Halogen free

有

Rated current

1.5A;30V
