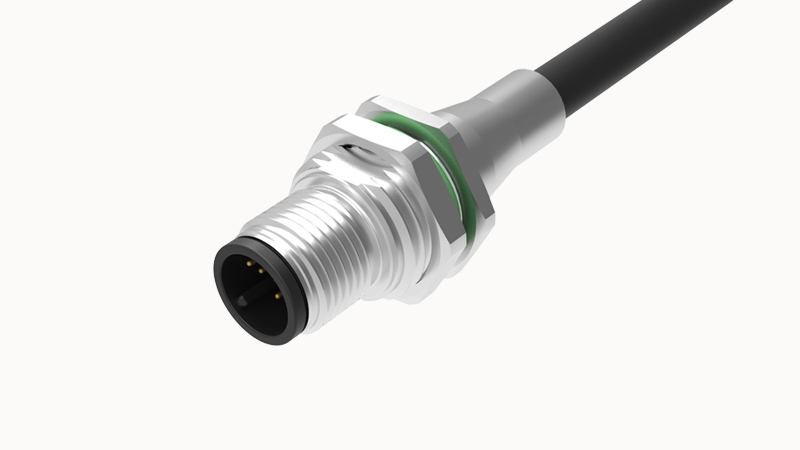

DEGSON SESH-M12A-12P-MM-SM8A01

Conductor material

Tinned copper

Ambient temperature

-40℃...80℃

IP class

IP68

Number of potentials

12

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Type of installation

Rear board installation

Products weight (without packaging)

/

Packing unit

100

Sealing cap

CAP-M12-FP-8002

Flame retardant

Comply with UL 758/1581 FT1 standard

Cable test voltage

2000V

Nominal cable voltage

300V

Conductor resistance

Maximum 59.4Ω/km (at 20 °C) )

Conductor insulation material

PVC

Outer sheath, material

PVC

Cable outer diameter D

5.0 ±0.2mm

Thickness, insulation

0.6mm

Wire color

1 Brown 2 Blue 3 White 4 Green 5 Pink 6 Yellow 7 Black 8 Gray 9 Red 10 Violet 11Gray/Pink 12Red/Blue

Core diameter (including insulation layer)

1.30±0.05mm

Wire structure Signal wire

17/0.16mm²

AWG signal wire

26AWG

Cross section

0.14mm²

UL AWM form

UL2517

Cable type(abbreviation)

PVC

Cable Types

PVC Black

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Material of contact surface

Au

Contact Materials

CuZn

Flammability rating ,in line with UL94

V0

Insulation resistance

≥ 100 MΩ

Halogen free

有

Rated current

1.5A;30V
