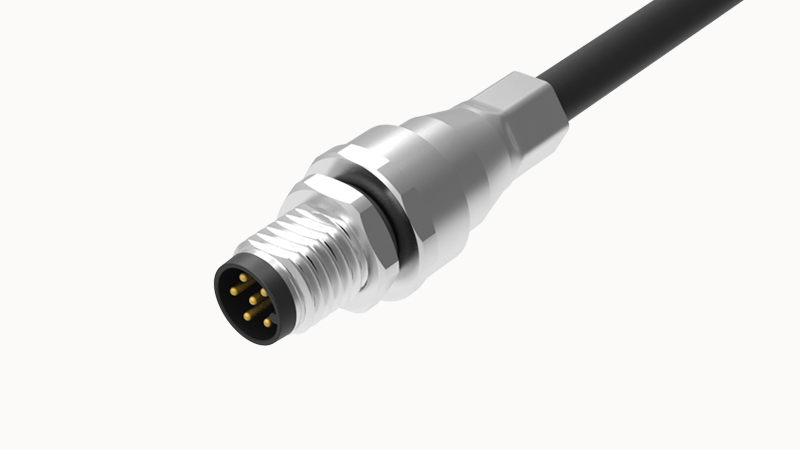

DEGSON SESH-M8A-06P-MM-SC7A01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP67

Number of potentials

6

Error-proof coding

A-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.3 Nm ... 0.4 Nm

Type of installation

Rear board installation

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PA

Coil material

Copper alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-104

Cable Types

PVC Black

Cable type(abbreviation)

PVC

UL AWM form

UL2517

Cross section

0.14mm²

AWG signal wire

26AWG

Core diameter (including insulation layer)

1.00±0.05mm

Wire color

1 Brown 2 White 3 Blue 4 Black 5 Gray 6 Pink

Cable outer diameter D

5.0 ±0.2mm

Minimum bend radius ,fixed installation

5*OD

Minimum bend radius ,mobile installation

10*OD

Bending radius

50.8mm

Outer sheath, material

PVC

Conductor insulation material

PVC

Conductor resistance

Maximum 94.2Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Special attributes

Silicone-free

Flame retardant

Compliant with UL758

Other protection functions

Anti-UV

Sealing cap

CAP-M12-FP-8002

Packing unit

100

Products weight (without packaging)

/

Insulation resistance

≥ 100 MΩ

Halogen free

有

Rated current

1.5A;30V
