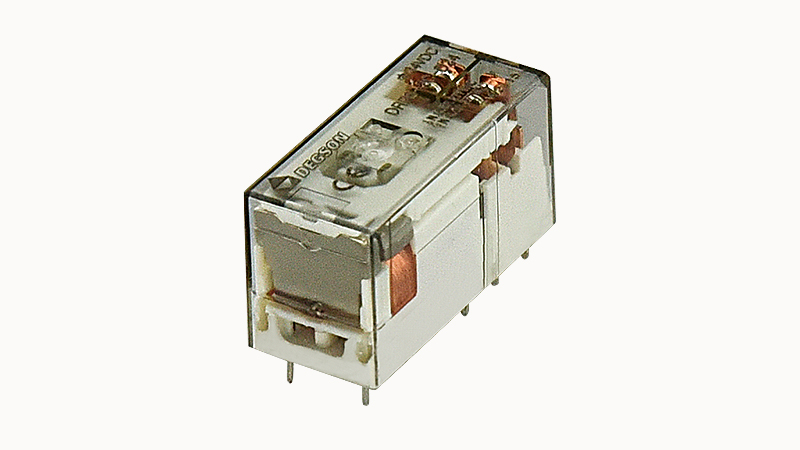

DEGSON Single relay-DRPB-2C-D24-06A(H)

reset voltage

≥5%

CoilResistance

1440Ω

Power consumption at rated conditions

0.40W

Ambient temperature (operation)

-40 °C ... +85 °C

Ambient temperature (storage/transportation)

-40 °C ... +85 °C

environment humidity

35%~85%RH

Rated input voltage UN

24VDC

Typical input current under UN

22mA

Maximum allowable voltage

1.1

Contact voltage maximum

277VAC/30VDC

Contact current maximum

8A

Contact composition

2C

Contact mechanism

single

Contact Materials

Ag alloy

Action time

<20ms

Reset time

<10ms

Maximum switching frequency (mechanical)

18000 times/h

Maximum switching frequency (rated load)

1800 times/h

Withstand voltage (between coil and contact)

5000VAC/1min

Withstand voltage (between contacts of the same pole)

1000VAC/1min

Shock proof

10G

Vibration resistant

10-55Hz

ElectricalLife

>1×105

Standards/Regulations

IEC 61810-1 IEC 60664

Protection level

IP50

Pollution level

3

Overvoltage category

Ⅲ

high

35.2mm

Test voltage relay coil/relay contact

5000VAC/1min

Test voltage PDT/PDT

1000VAC/1min

Operation mode

100% work factor

Installation location

Arbitrary

Packing unit

Products weight (without packaging)

Insulation resistance

≥100MΩ

Mechanical life

>1×107

insulation

Basic isolation

Operating voltage

≤75%

length

29mm

width

12.6mm
