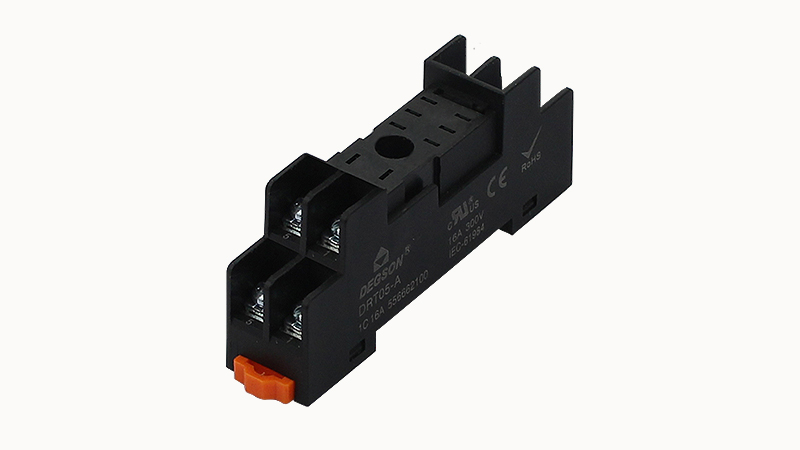

DEGSON Relay base-DSRT08A-3-00A(H)

Ambient temperature (storage/transportation)

-40 °C ... +85 °C

Ambient temperature (operation)

-20 °C ... 50 °C

Rated voltage UN

300V

Rated current IN

10A

Installation location

Arbitrary

Assembly instructions

DIN35 rail

Connection name

enter

Cross section of flexible conductor

0.5... 2.5mm²

Connectable guide cross section AWG

20-14AWG

Depth including bracket

29.5mm

Packing unit

Products weight (without packaging)

screw thread

M3

Stripping length

7-8mm

Connection method

Screw connection

length

73.3mm

width

16mm
