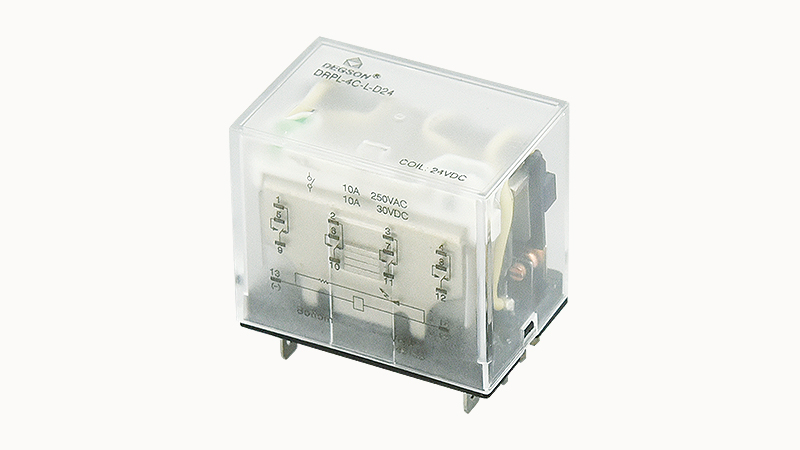

DEGSON Single relay-DRPL-4C-L-D24-02A(H)

Ambient temperature (operation)

-25 °C ... 55 °C

Ambient temperature (storage/transportation)

-25 °C ... 55 °C

environment humidity

35%~85%RH

Rated input voltage UN

24VDC

Typical input current under UN

62.5mA

CoilResistance

1536Ω

Reset voltage

≥10%

Maximum allowable voltage

1.1

Power consumption under rated conditions

1.5W

Maximum contact voltage

AC240V DC28V

Maximum contact current

10A

Contact composition

4C

Contact mechanism

single

Contact Materials

Ag alloy

Action time

<20ms

Reset time

<20ms

Maximum switching frequency (mechanical)

18000 times/h

Maximum switching frequency (rated load)

1800 times/h

Withstand voltage (between coil and contact)

1500VAC/1min

Withstand voltage (between different pole contacts)

1000VAC/1min

Withstand voltage (between contacts of the same pole)

1000VAC/1min

Shock proof

10G

Vibration resistant

10-55Hz

ElectricalLife

>1×105

Standards/Regulations

IEC 61810-1 IEC 60664

Protection level

IP50

Pollution level

3

Overvoltage category

Ⅲ

Test voltage relay coil/relay contact

1500VAC/1min

Test voltage PDT/PDT

1000VAC/1min

Operation mode

100% work factor

Installation location

Arbitrary

Relay socket

DPTF14A-3-02A(H)

Packing unit

20

Products weight (without packaging)

80

Contact resistance

≤100mΩ

Insulation resistance

≥100MΩ

Mechanical life

>1×107

insulation

Basic isolation

Operating voltage

≤75%

length

41.5mm

width

28mm

高度

36mm
