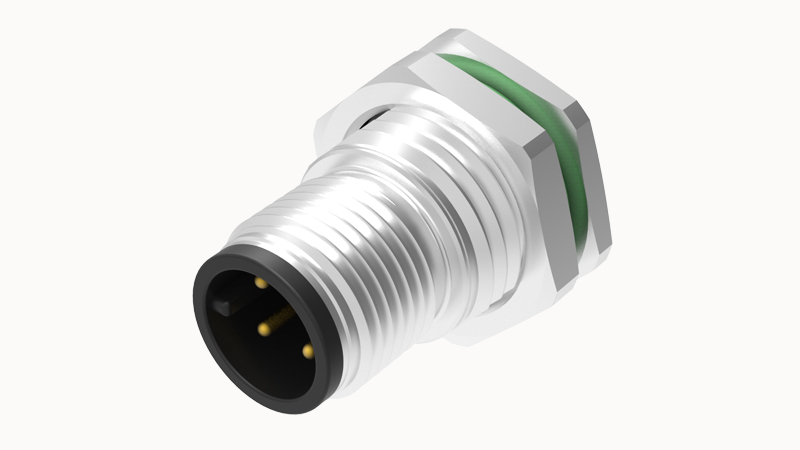

DEGSON SP-M12B-05P-MM-SF8002

Ambient temperature

-40℃...105℃

IP class

IP68

Number of potentials

5

Error-proof coding

B-Code

Overvoltage level

Ⅱ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Type of installation

Rear board installation

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Standards/specifications

IEC 61076-2-101

Sealing material

Silicon

Coil material

Zinc alloy, nickel plated

Contact carrier material

PA

Insulation resistance

≥ 100 MΩ

Rated current

4A

Connection method

Soldering pin
