DEGSON TS4
- 收藏
- 对比
TS4
637-TS4
端子块 - 配件
--
大陆
立即发货

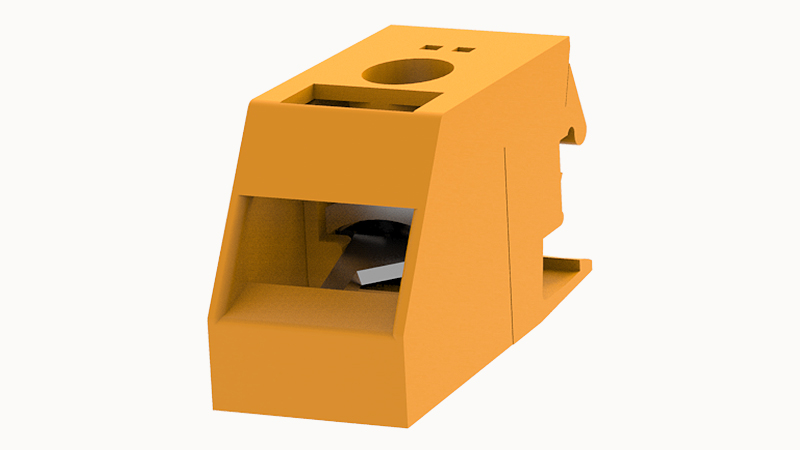

Transformer terminal blocks,Rated current:32A.Rated voltage （III/2）:250V,Color:Orange ,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
TS4详情
DEGSON TS4重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.75~4mm²
Conductor cross section flexible
0.75~4.0mm²
AWG
20~12AWG
Torque
1.2N.m
Strip length
9mm
Rated voltage (B)
600V
Rated voltage (C)
600V
Rated voltage (D)
600V
Rated current (B)
20A
Rated current (D)
5A
Rated current (C)
20A
Rated current(III/2)
250V
Rated surge voltage(III/2)
2KV
Type of installation
panel
Screwdriver
slotted-phillips screwdriver
Number of potentials
1
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
screw thread
M4
Connection method
Screw connection
Flammability rating
UL94V-0
