DEGSON TSC6
- 收藏
- 对比
TSC6
637-TSC6
端子块 - 配件
--
大陆
立即发货

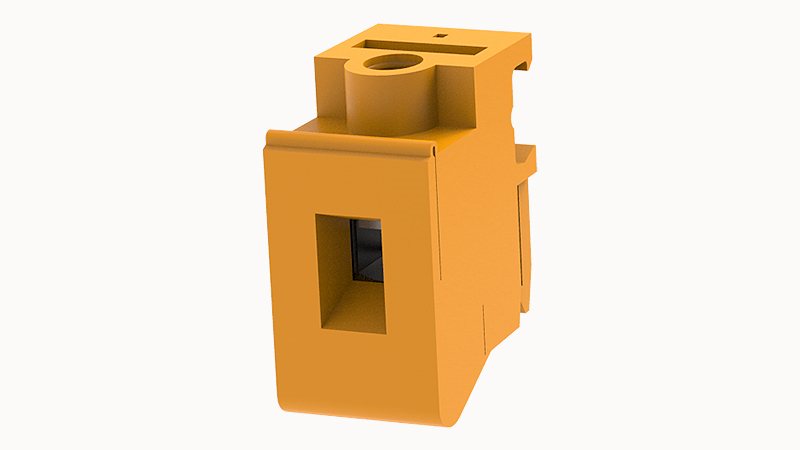

Transformer terminal blocks,Rated current:41A.Rated voltage （III/2）:750V,Color:Orange ,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
TSC6详情
DEGSON TSC6重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.5~6mm²
Conductor cross section flexible
0.5~6.0mm²
AWG
20~10AWG
Torque
1.2N.m
Strip length
11mm
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated current (B)
20A
Rated current (C)
20A
Rated current(III/2)
750V
Rated surge voltage(III/2)
2.5KV
Type of installation
panel
Screwdriver
Slotted screwdriver
Number of potentials
1
Pluggable or not
no
Environmental items
Compliant with REACH/RoHS
Contact Materials
copper
Contact point metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
UL1059/IEC60998
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
screw thread
M4
Connection method
Screw connection
Flammability rating
UL94V-0
