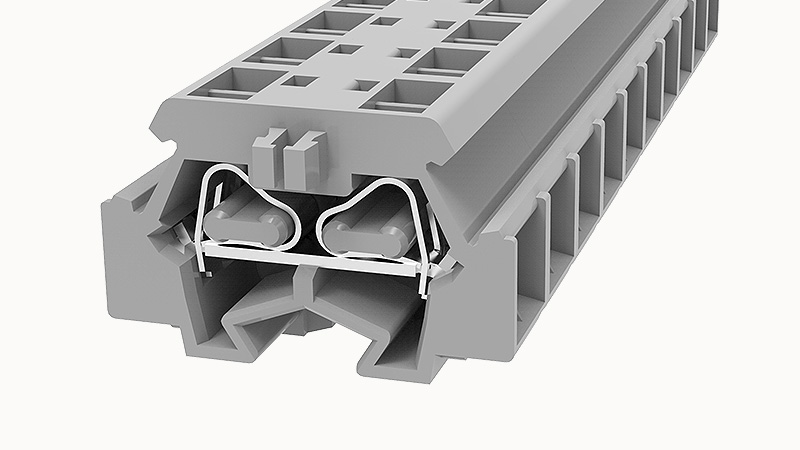

DEGSON WS1.5T-DB

number of connections

4

Open-end side panels

有

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-1

End plate width

2.5mm

Strip length

8~9mm

Conductor cross section solid AWG

28~16

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

2 flexible conductors with a TWIN ferrule

0.5mm²

Rated voltage (III / 3)

800V

Rated current(III/3)

17.5A

Rated surge voltage

8KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

1

Rated current

10A

Connection method

spring-cage connection

Rated voltage

300V

width

8mm

高度

17mm

length

25mm

REACh SVHC

Lead 7439-92-1
