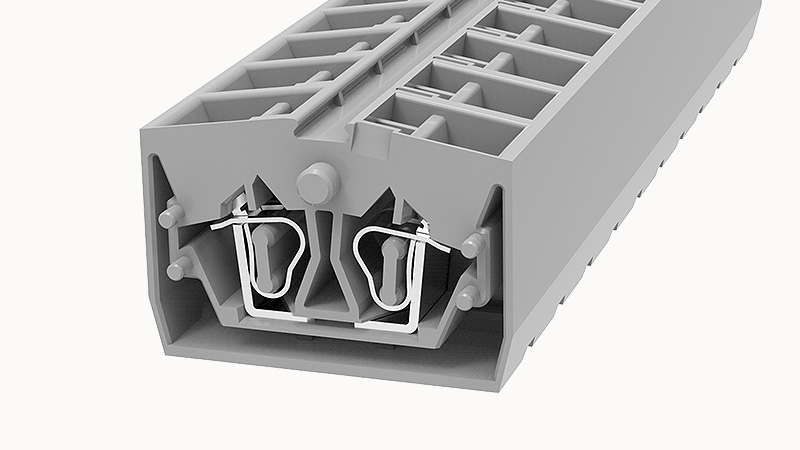

DEGSON WS2.5T-MID-CO

RoHS

No excessive harmful substances

Anti-finger touch

Passed the test

Temperature rise test

≤45 K

Voltage drop

≤3.2mV

Rotational Pull Test

Passed the test

Fixing support

Passed the test

Mechanical strength

Passed the test

Ambient temperature (storage/transportation)

-25℃~60℃

Relative humidity (storage/transport)

25%~75%

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Rated surge voltage

8KV

Rated current(III/3)

24A

Rated voltage (III / 3)

800V

2 flexible conductors with a TWIN ferrule

0.5mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.2-2.5mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.2-2.5mm²

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Conductor cross section solid AWG

28~14

Strip length

8~9mm

End plate width

4mm

standard test

IEC60947-7-1

Insulating material group

I

Flame retardant grade, in line with UL94

V0

Insulation Materials

PA

Open-end side panels

有

number of connections

4

Number of rows

1

Rated current

20A

Connection method

spring-cage connection

Rated voltage

600V

length

32mm

高度

22.00mm

width

10mm

REACh SVHC

Lead 7439-92-1
