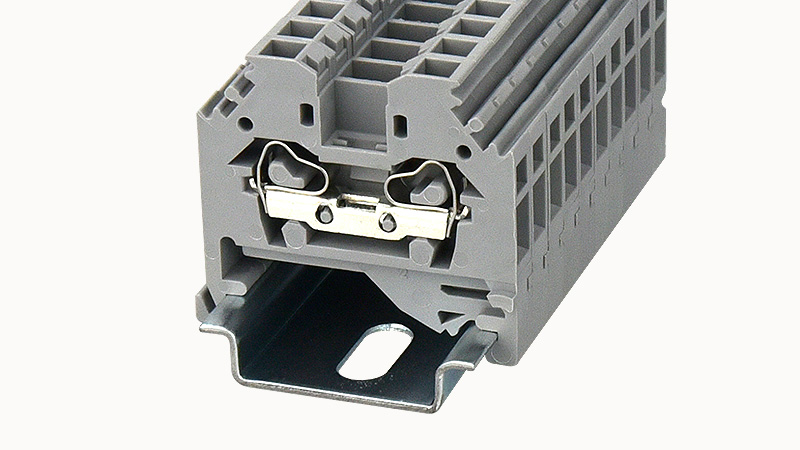

DEGSON WS4-SD

number of connections

2

Open-end side panels

有

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-1

End plate width

2.5mm

NS 35/7,5 Height

40mm

NS 35/15 Height

47.5mm

Strip length

10~12mm

Conductor cross section solid AWG

28~12

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.2-2.5mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.2-2.5mm²

2 flexible conductors with a TWIN ferrule

0.5mm²

Rated voltage (III / 3)

800V

Rated current(III/3)

32A

Rated surge voltage

8KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

1

Rated current

20A

Connection method

spring-cage connection

Rated voltage

600V

width

6mm

高度

37mm

length

41.8mm

REACh SVHC

Lead 7439-92-1
