DEGSON WS6-SD
- 收藏
- 对比
WS6-SD
637-WS6-SD
端子块 - 配件
--
大陆
立即发货

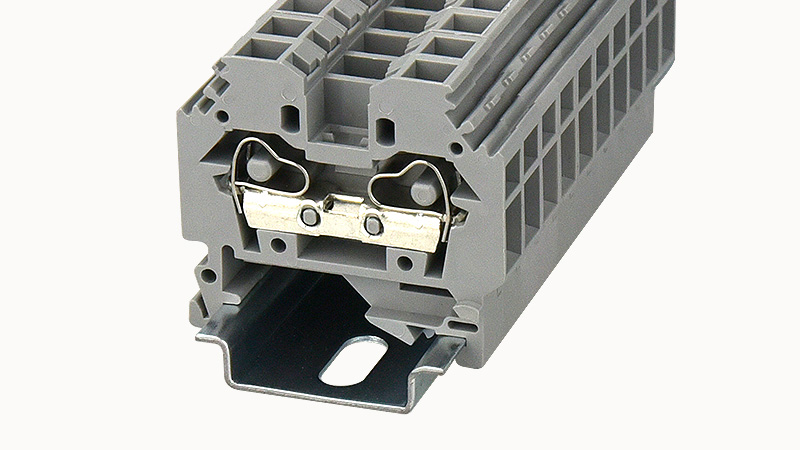

Spring-cage type Din-Rail TB, connector method: Spring-cage/plug-in connector, Rated voltage: 800 V, Rated current: 41 A, Number of connectors: 2, Number of potentials: 1, Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, Width: 8 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
WS6-SD详情
DEGSON WS6-SD重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
2 flexible conductors with a TWIN ferrule
0.5-2.5mm²
Rated voltage (III / 3)
800V
Rated current(III/3)
32A
Rated surge voltage
8KV
Ambient temperature (operation)
-40 °C ~ 105 °C（depending on derating curve）
Relative humidity (storage/transport)
25%~75%
Ambient temperature (storage/transportation)
-25℃~60℃
Mechanical strength
Passed the test
Fixing support
Passed the test
Rotational Pull Test
Passed the test
Voltage drop
≤3.2mV
Temperature rise test
≤45 K
Anti-finger touch
Passed the test
RoHS
No excessive harmful substances
number of connections
2
Open-end side panels
有
Insulation Materials
PA
Flame retardant grade, in line with UL94
V0
Insulating material group
I
standard test
IEC60947-7-1
End plate width
4mm
NS 35/7,5 Height
44.5mm
NS 35/15 Height
52mm
Strip length
9~10mm
Conductor cross section solid AWG
24~10
Conductor cross section solid
0.2~6mm²
Conductor cross section flexible
0.2~6mm²
Number of rows
1
Rated current
20A
Connection method
spring-cage connection
Rated voltage
600V
width
8mm
高度
41.6mm
length
46mm
REACh SVHC
Lead 7439-92-1
