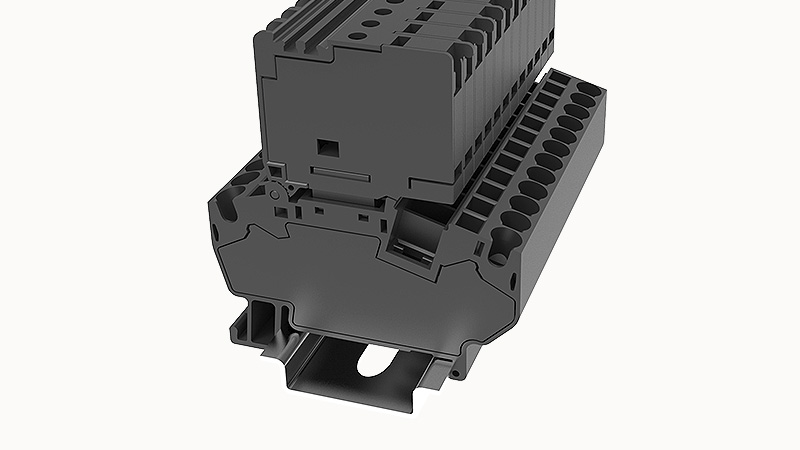

DEGSON WSF4-TA-10A(H)

number of connections

2

Open-end side panels

no

Insulation Materials

PA

Flame retardant grade, in line with UL94

V0

Insulating material group

I

standard test

IEC60947-7-3

NS 35/7,5 Height

68mm

NS 35/15 Height

75.5mm

Strip length

10~12mm

Conductor cross section solid AWG

28~12

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4mm²

Conductor cross section flexible (ferrule without plastic sleeve)

0.2-2.5mm²

Conductor cross section flexible (ferrule with plastic sleeve)

0.2-2.5mm²

2 flexible conductors with a TWIN ferrule

0.5-1mm²

Rated voltage (III / 3)

400V

Rated current(III/3)

10A

Rated surge voltage

6KV

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Relative humidity (storage/transport)

25%~75%

Ambient temperature (storage/transportation)

-25℃~60℃

Mechanical strength

Passed the test

Fixing support

Passed the test

Rotational Pull Test

Passed the test

Voltage drop

≤3.2mV

Temperature rise test

≤45 K

Anti-finger touch

Passed the test

RoHS

No excessive harmful substances

Number of rows

1

Fuse type

Glass/ceramic/...

Rated current

10A

Connection method

spring-cage connection

Rated voltage

300V

fuse

G/5 x 20

width

6mm

高度

66.6mm

length

60mm

REACh SVHC

Lead 7439-92-1
