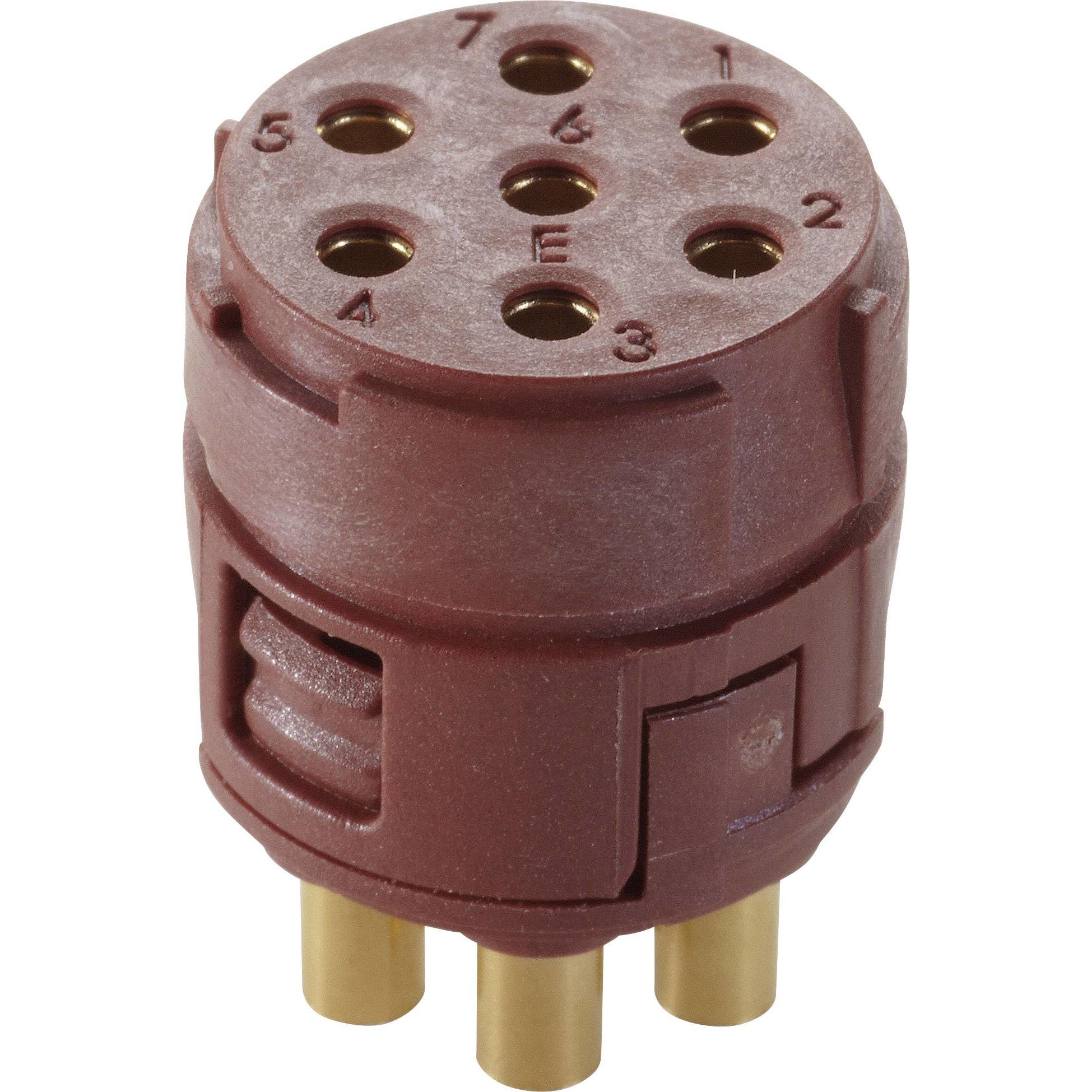

Lapp 44420158

Number of pins

7

Content

5pc(s)

Total no. of pins

7

Industrial packaging

有

Leading contact (PE)

无

Connections

Soldering,Crimp

Manufacturer part #

44420158

Contamination level

3

Connector cross section

1 - 2.50mm²

Contact Materials

黄铜镀金

Contact insert without contacts

无

Diameter plug-in contact

2.5

Material connector insert

Thermoplastic

Rated current In

18

Ambient temperature

-25 - 125

Rated surge voltage

4

Overvoltage category

IV

Pollution degree

3

Type of electric connection

焊接连接

With wire protection

有

Connectable conductor cross section fine-strand without cable end sleeve

1 - 2.5

Connectable conductor cross section fine-strand with cable end sleeve

1 - 2.5

Connectable conductor cross section solid-core

1 - 2.5

Connectable conductor cross section multi-wired

1 - 2.5

Material of contact surface

Gold

Material contact

Brass

Inflammability class of insulation material according to with UL94

V0

With protective conductor

无

Connector type

Socket

类型

E part, right-hand

Contact type

Bus

Number of poles

7

Rated voltage

150

特征

Right-hand
