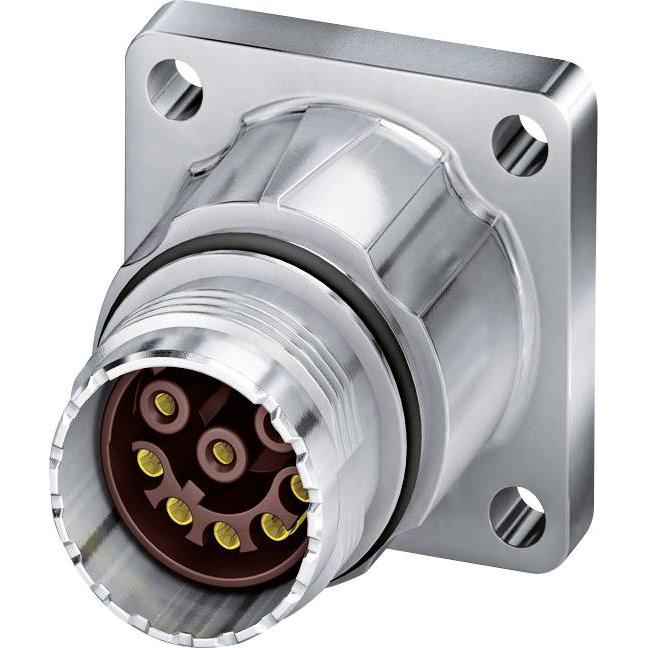

Lapp 44423108

Mounting type

Structure

Number of pins

7

Content

5pc(s)

Total no. of pins

7 + PE

Factory colour

Silver

Industrial packaging

有

Leading contact (PE)

有

Connections

Crimp

Manufacturer part #

44423108

Contamination level

3

Connector cross section

0.06 - 1mm²

Contact Materials

黄铜镀金

Case material

压铸锌

With protective conductor

无

Connectable conductor cross section fine-strand with cable end sleeve

0.06 - 1

Type of electric connection

压接

Ambient temperature

-40 - 125

Rated current In

3.6

Connectable conductor cross section fine-strand without cable end sleeve

0.06 - 1

Material housing

Zinc

Thread size M

17

Material of contact surface

Gold

Locking mechanism

压盖螺母

Connectable conductor cross section multi-wired

0.06 - 1

Pollution degree

3

Degree of protection (IP), mounted

IP67

Connectable conductor cross section solid-core

0.06 - 1

Connector type

Plug, straight

类型

44423108

Test current

3.60A

Temperature range

-40 °C - +125°C

Rated voltage

60V

IP rating

IP67
