Lapp 73002761

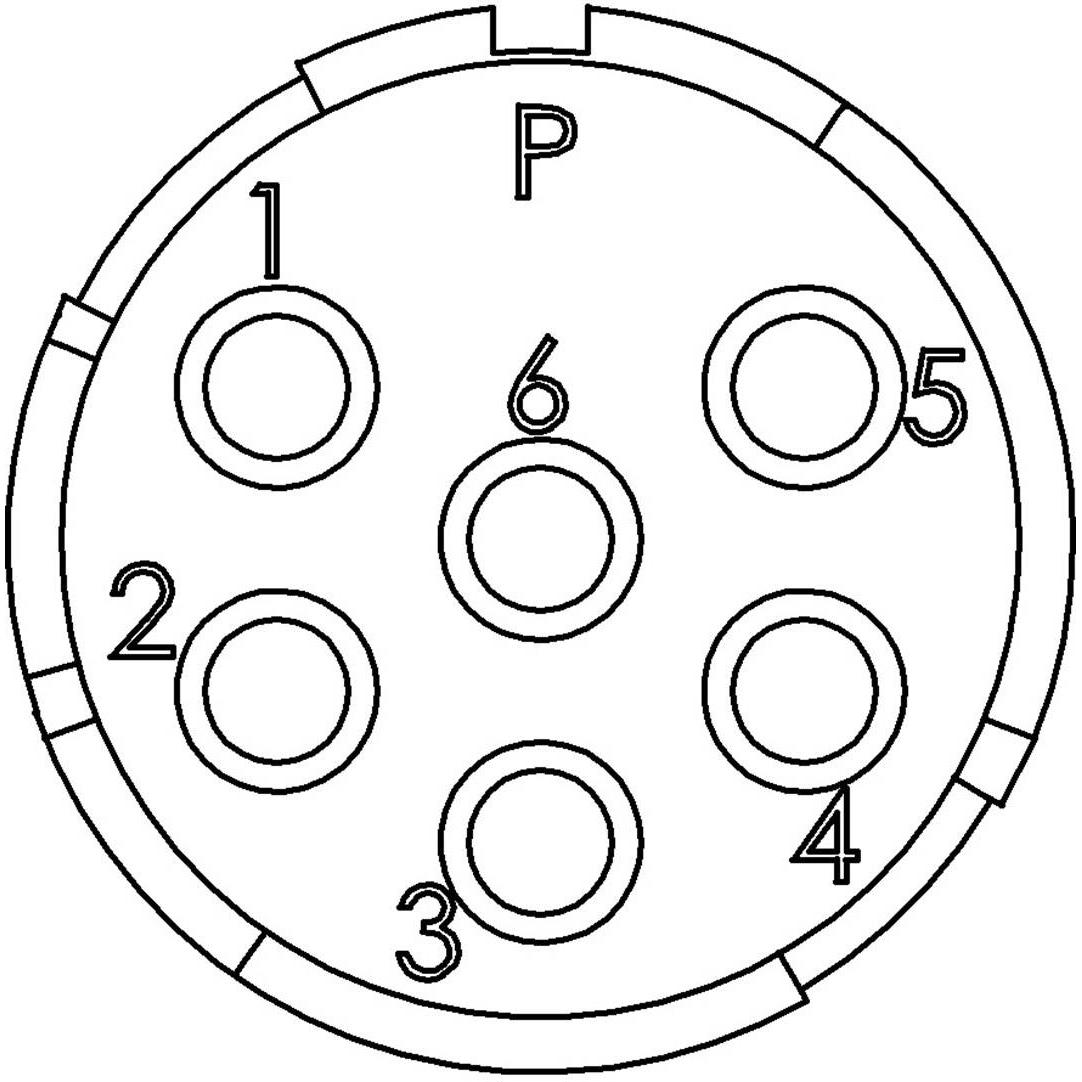

Number of pins

6

Content

20pc(s)

Total no. of pins

6

Industrial packaging

有

Leading contact (PE)

无

Manufacturer part #

73002761

Contamination level

3

With protective conductor

无

Connectable conductor cross section fine-strand with cable end sleeve

1 - 2.5

Type of electric connection

压接

Ambient temperature

-25 - 125

Rated current In

18

Connectable conductor cross section fine-strand without cable end sleeve

1 - 2.5

Material connector insert

Thermoplastic

Diameter plug-in contact

2.5

Material of contact surface

Gold

Material contact

Brass

Contact insert without contacts

有

Connectable conductor cross section multi-wired

1 - 2.5

Pollution degree

3

With wire protection

有

Overvoltage category

IV

Inflammability class of insulation material according to with UL94

V0

Rated surge voltage

4

Connectable conductor cross section solid-core

1 - 2.5

Connector type

Plug,Socket

类型

P part, left-hand

Test current

18A

Temperature range

-25 °C - +125°C

Rated voltage

150V

特征

Left-hand
