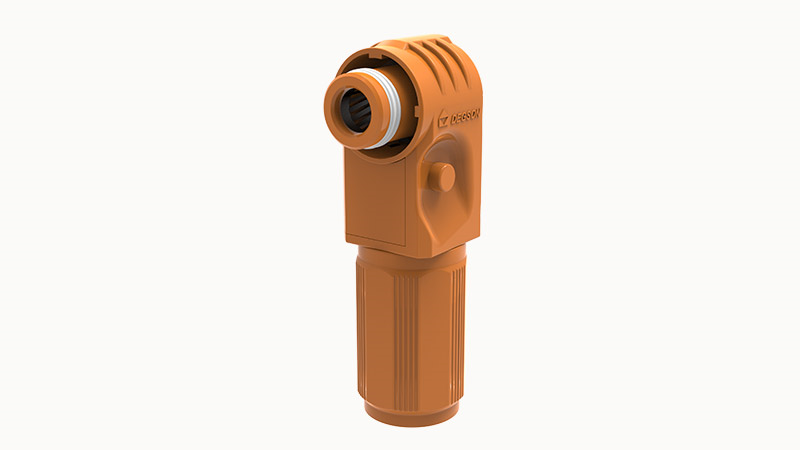

DEGSON ESP-200A-50-OR-90
- 收藏
- 对比
ESP-200A-50-OR-90
637-ESP-200A-50-OR-90
背板连接器 - 配件
--
大陆
立即发货
Energy storage Connector, Product range: ESP plug, color: orange, Wire cross section: 50 mm², Rated voltage: 1500V, Rated current: 200 A, Connection method: crimp, Contact type: hole type, min. Cable diameter: 12.5mm, Max. Cable diameter: 14mm
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ESP-200A-50-OR-90详情
DEGSON ESP-200A-50-OR-90重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
O-ring material
Silicone
Cable sectional area
1/0AWG(50mm²）
Number of connections
1
Cable outer diameter
12.5~14mm
Cable stripping length
13~14mm
Wiring mode
Crimp
Protection grade (pair plug)
IP67
Ambient temperature (operation)
-40°C ~ +125°C
Ambient temperature (storage/transportation)
-40°C ~ +80°C
Altitude
2000m
Plugging times
100
Pullout force
>10N
Standard/Specification
UL4128
Insulating material
Nylon
Clamping ring material
Silicone
Halogen-free
Compliance with standards
Environmental protection matters
REACH/RoHS compliant
Contact Materials
Copper alloy
Shell color
Orange
Pollution level
3
Contact resistance
≤0.5mΩ
Insulation resistance
>5000MΩ
Rated current
UL DC1500V
Insertion force
< 100N
Flammability rating
UL94V-0
