DEGSON ESS-200A-50-B-BK-18
- 收藏
- 对比
ESS-200A-50-B-BK-18
637-ESS-200A-50-B-BK-18
背板连接器 - 配件
--
大陆
立即发货

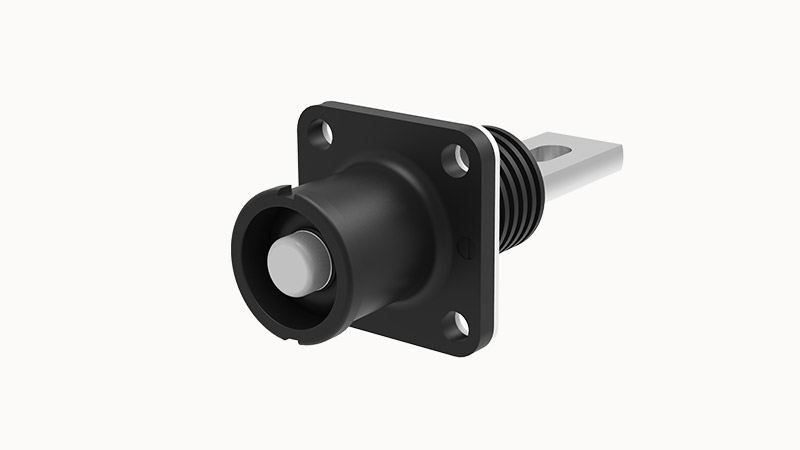

Energy Storage Connector, Product range: ESS socket, Color: black, Wire cross section: 50 mm², Rated voltage: 1500V, Rated current: 200 A, Connection method: Busbar, Contact type: needle
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ESS-200A-50-B-BK-18详情
DEGSON ESS-200A-50-B-BK-18重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Wiring mode
Busbar
Protection grade (pair plug)
IP67
Ambient temperature (operation)
-40°C ~ +125°C
Ambient temperature (storage/transportation)
-40°C ~ +80°C
Altitude
2000m
Plugging times
100
Pullout force
>10N
Standard/Specification
UL4128
Insulating material
Nylon
Halogen-free
Compliance with standards
Environmental protection matters
REACH/RoHS compliant
Sealing ring material
Silicone
Contact Materials
Copper alloy
Shell color
Black
Pollution level
3
Contact resistance
≤0.5mΩ
Insulation resistance
>5000MΩ
Rated current
UL DC1500V
Insertion force
< 100N
Flammability rating
UL94V-0
