DEGSON ESP-50A-06-OR-00
- 收藏
- 对比
ESP-50A-06-OR-00
637-ESP-50A-06-OR-00
背板连接器 - 配件
--
大陆
立即发货

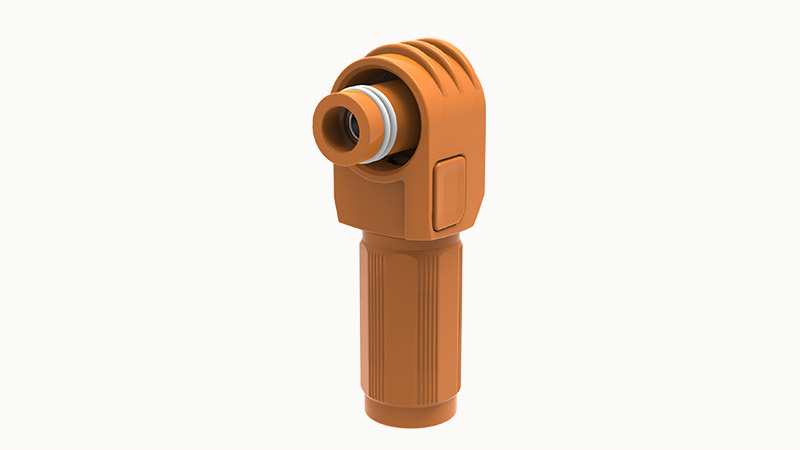

Energy storage connector, product range :ESP plug, color: orange, wire section :6mm², rated voltage :1000V, rated current :50a, connection mode: crimped, contact mode: open hole, minimum diameter 4.9mm, maximum diameter 6mm
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ESP-50A-06-OR-00详情
DEGSON ESP-50A-06-OR-00重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
O-ring material
Silicone
Cable sectional area
10AWG(6mm²）
Number of connections
1
Cable outer diameter
4.9~6.0mm
Wiring mode
Crimp
Protection grade (pair plug)
IP67
Ambient temperature (operation)
-40°C ~ +125°C
Ambient temperature (storage/transportation)
-40°C ~ +80°C
Altitude
2000m
Plugging times
100
Pullout force
>10N
Insulating material
Nylon
Clamping ring material
Silicone
Halogen-free
Compliance with standards
Environmental protection matters
REACH/RoHS compliant
Contact Materials
Copper alloy
Shell color
Orange
Pollution level
3
Contact resistance
≤0.5mΩ
Insulation resistance
>5000MΩ
Rated current
50A
Insertion force
<55N
Flammability rating
UL94V-0
