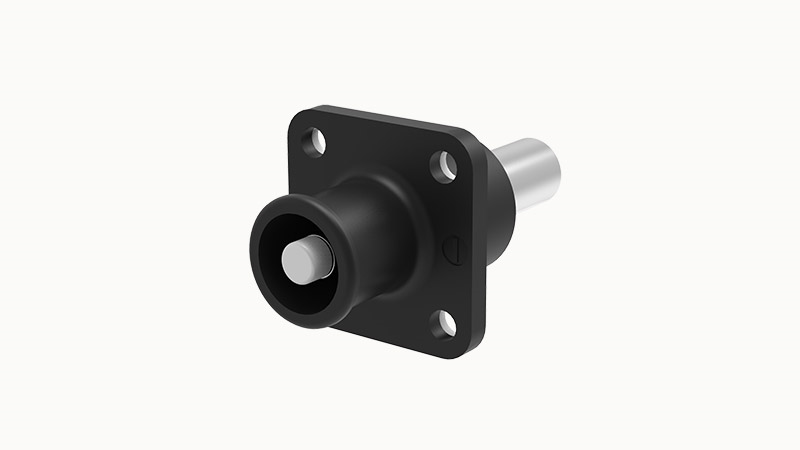

DEGSON ESS-120A-25-C-BK-00
- 收藏
- 对比
ESS-120A-25-C-BK-00
637-ESS-120A-25-C-BK-00
背板连接器 - 配件
--
大陆
立即发货
Energy Storage Connector, Product range: ESS socket, Color: black, Wire cross section: 25 mm², Rated voltage: 1500V, Rated current: 120 A, Connection method: Crimp, Contact type: Needle
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ESS-120A-25-C-BK-00详情
DEGSON ESS-120A-25-C-BK-00重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Wiring mode
Crimp
Protection grade (pair plug)
IP67
Ambient temperature (operation)
-40°C ~ +125°C
Ambient temperature (storage/transportation)
-40°C ~ +80°C
Altitude
2000m
Plugging times
100
Pullout force
>10N
Standard/Specification
UL4128
Insulating material
Nylon
Halogen-free
Compliance with standards
Environmental protection matters
REACH/RoHS compliant
Sealing ring material
Silicone
Contact Materials
Copper alloy
Shell color
Black
Pollution level
3
Contact resistance
≤0.5mΩ
Insulation resistance
>5000MΩ
Rated current
120A
Insertion force
<60N
Flammability rating
UL94V-0
