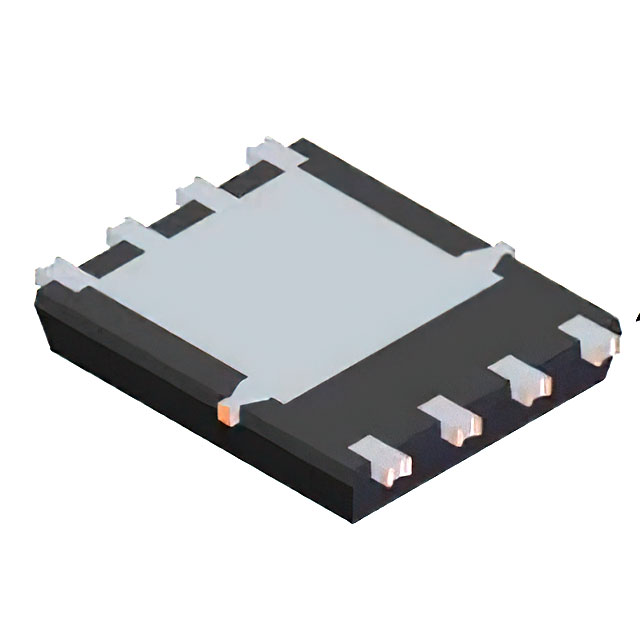

Diodes Incorporated DMTH4007SPSWQ-13

安装类型

Surface Mount, Wettable Flank

包装/外壳

8-PowerTDFN

供应商器件包装

PowerDI5060-8 (Type UX)

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

4V @ 250µA

Power Dissipation (Max)

2.8W (Ta), 136W (Tc)

Qualification

AEC-Q101

厂商

Diodes Incorporated

Current - Continuous Drain (Id) @ 25℃

15.7A (Ta), 100A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

操作温度

-55°C ~ 175°C (TJ)

包装

Tape & Reel (TR)

零件状态

活跃

场效应管类型

N-Channel

Rds On(Max)@Id,Vgs

7.6mOhm @ 20A, 10V

输入电容(Ciss)(Max)@Vds

2082 pF @ 25 V

门极电荷(Qg)(最大)@Vgs

41.9 nC @ 10 V

漏源电压 (Vdss)

40 V

Vgs（最大值）

±20V

职系

汽车
