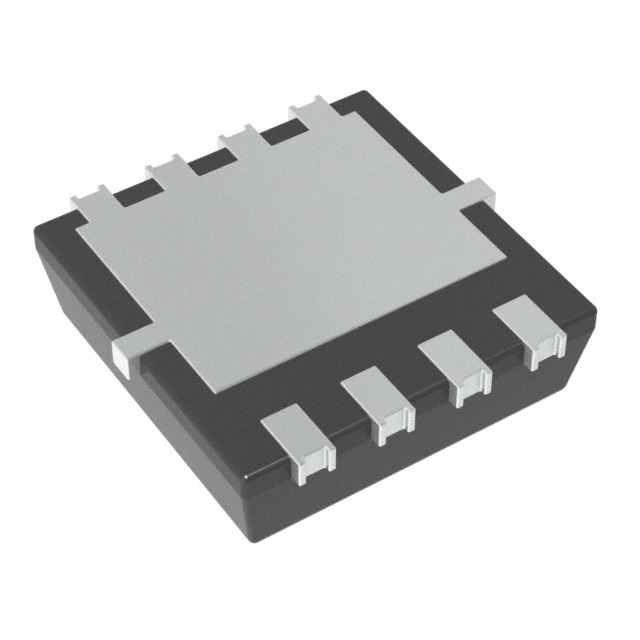

Diodes Incorporated DMTH45M5SFVWQ-13

安装类型

Surface Mount, Wettable Flank

包装/外壳

8-PowerVDFN

供应商器件包装

PowerDI3333-8 (SWP) Type UX

厂商

Diodes Incorporated

Current - Continuous Drain (Id) @ 25℃

18A (Ta), 71A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

3.5V @ 250μA

Power Dissipation (Max)

3.5W (Ta), 51W (Tc)

Qualification

AEC-Q101

包装

Tape & Reel (TR)

操作温度

-55°C ~ 175°C (TJ)

零件状态

活跃

场效应管类型

N-Channel

Rds On(Max)@Id,Vgs

5.5mOhm @ 25A, 10V

输入电容(Ciss)(Max)@Vds

1083 pF @ 20 V

门极电荷(Qg)(最大)@Vgs

13.2 nC @ 10 V

漏源电压 (Vdss)

40 V

Vgs（最大值）

±20V

职系

汽车
