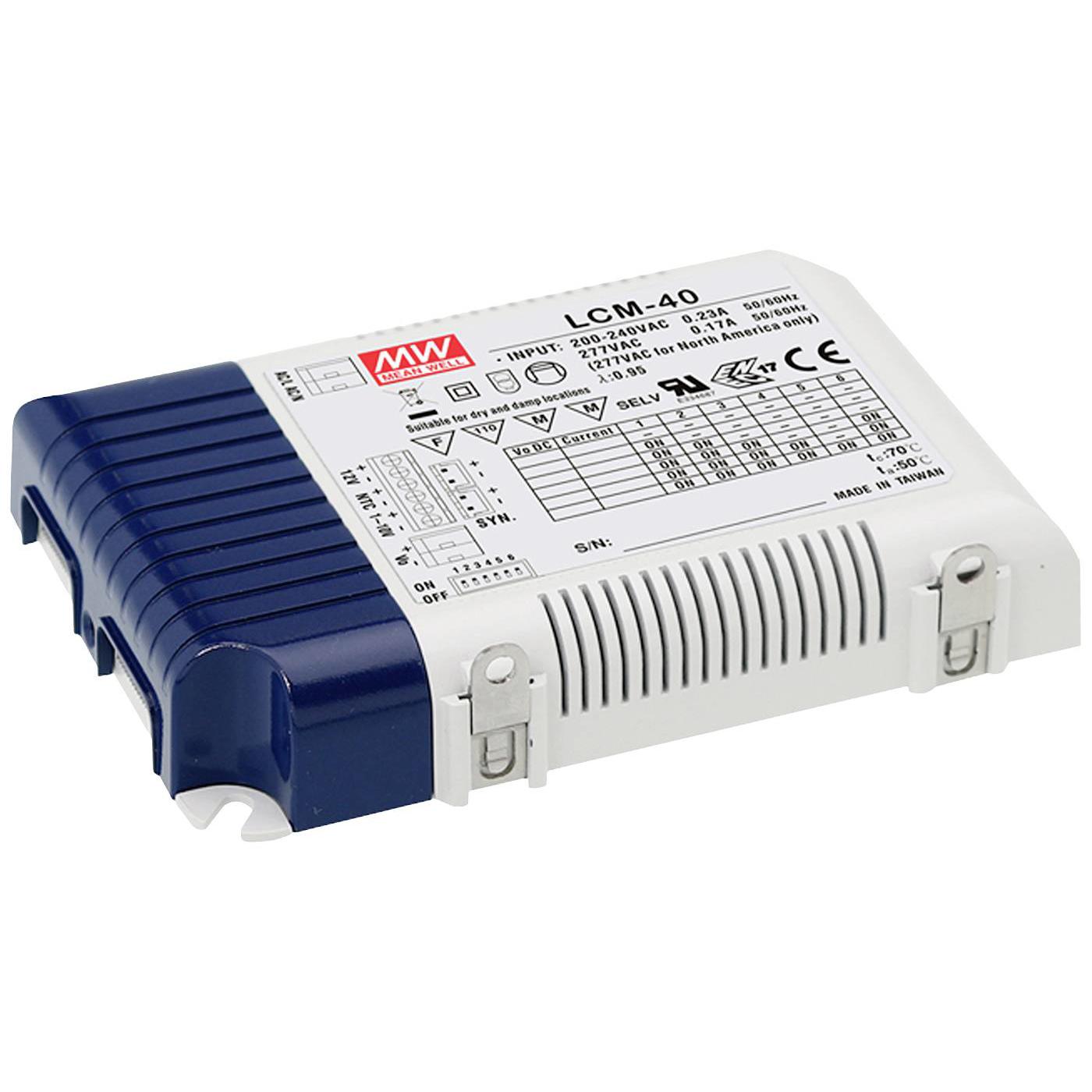

MEAN WELL LCM-40DA2

质量

240g

Dim

(L x W x H) 123.50 x 81.50 x 23 mm

Max. output current

1.05A

Output current (max.) - rounded

1.05A

Power range

42 W (max)

Input voltage (max.)

295V AC,417V DC

Min. input voltage

180V AC,254V DC

Output voltage (max.)

100V

Output voltage (min.)

2V

Max. power

42W

No. of outputs

1x

Max. temperature

+90°C

Min. temperature

-30°C

Input Frequency

47 to 63 Hz

Minimum Isolation Voltage

3750 Vac

终端

接线端子

效率

91 %

输出电压

2 to 100/2 to 80/2 to 67/2 to 57/2 to 45/2 to 40 V

输出类型

恒定电流

输出电流

350/500/600/700/900/1050 mA

输出功率

42 W

输入电压

254 to 417/180 to 295 Vdc/Vac

高度

23mm

长度

123.50mm

宽度

81.50mm
