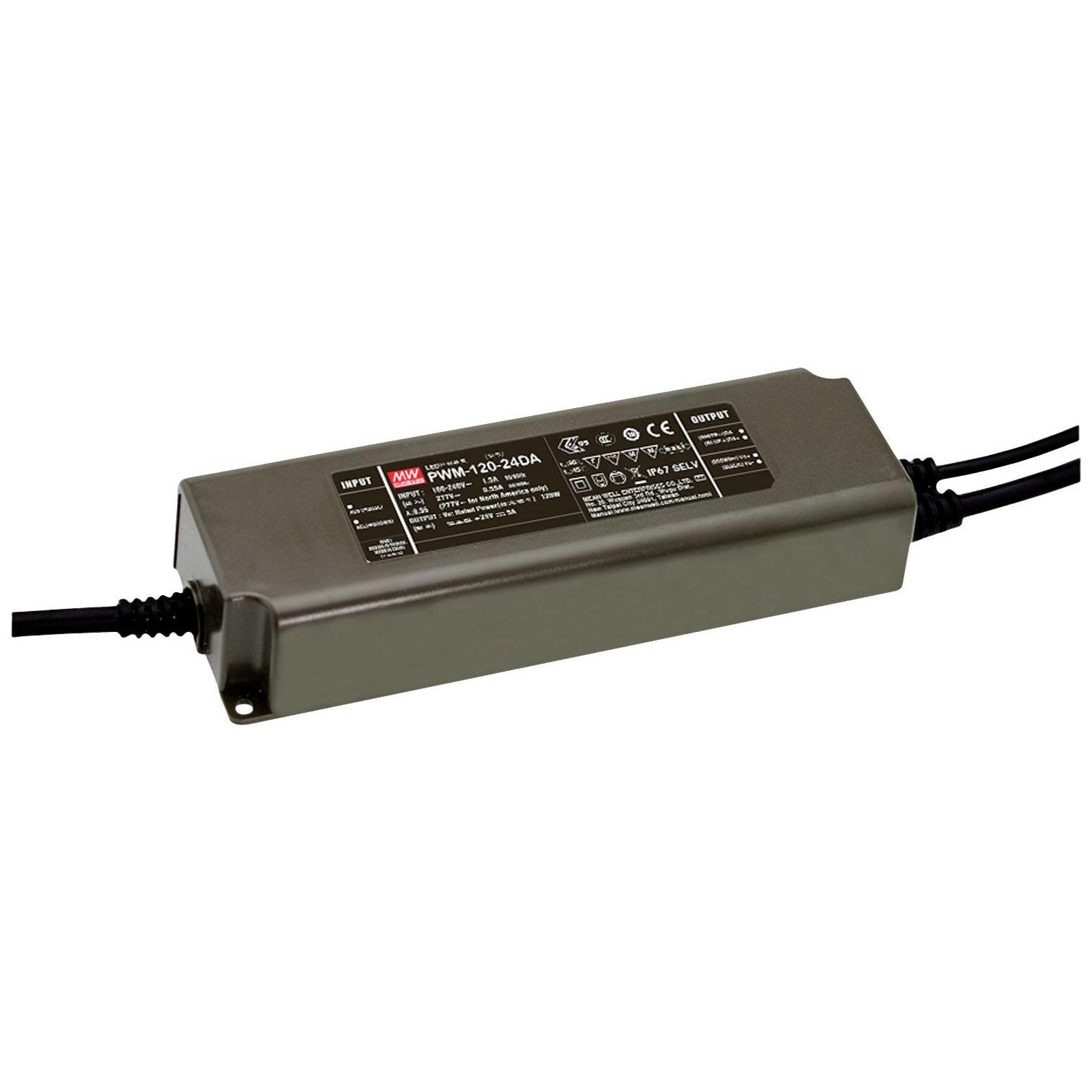

MEAN WELL PWM-120-24DA2

质量

970g

Dim

(L x W x H) 191 x 63 x 37.50 mm

Max. output current

5A

Output current (max.) - rounded

5A

Power range

120 W (max)

Input voltage (max.)

305V AC,431V DC

Min. input voltage

90V AC,127V DC

Output voltage (max.)

24V

Max. power

120W

No. of outputs

1x

Max. temperature

+90°C

Min. temperature

-40°C

Input Frequency

47 to 63 Hz

Minimum Isolation Voltage

3750 Vac

Unit Weight

2.138 lbs

Factory Pack QuantityFactory Pack Quantity

15

Manufacturer

鄙井

Brand

鄙井

RoHS

Details

系列

PWM-120

终端

Wire Leaded

子类别

AC-DC Power Supply

效率

90 %

输出电压

24 V

输出类型

恒压

输出电流

5 A

输出功率

120 W

输入电压

127 to 431/90 to 305 Vdc/Vac

产品类别

LED电源

高度

37.50mm

长度

191mm

宽度

63mm
