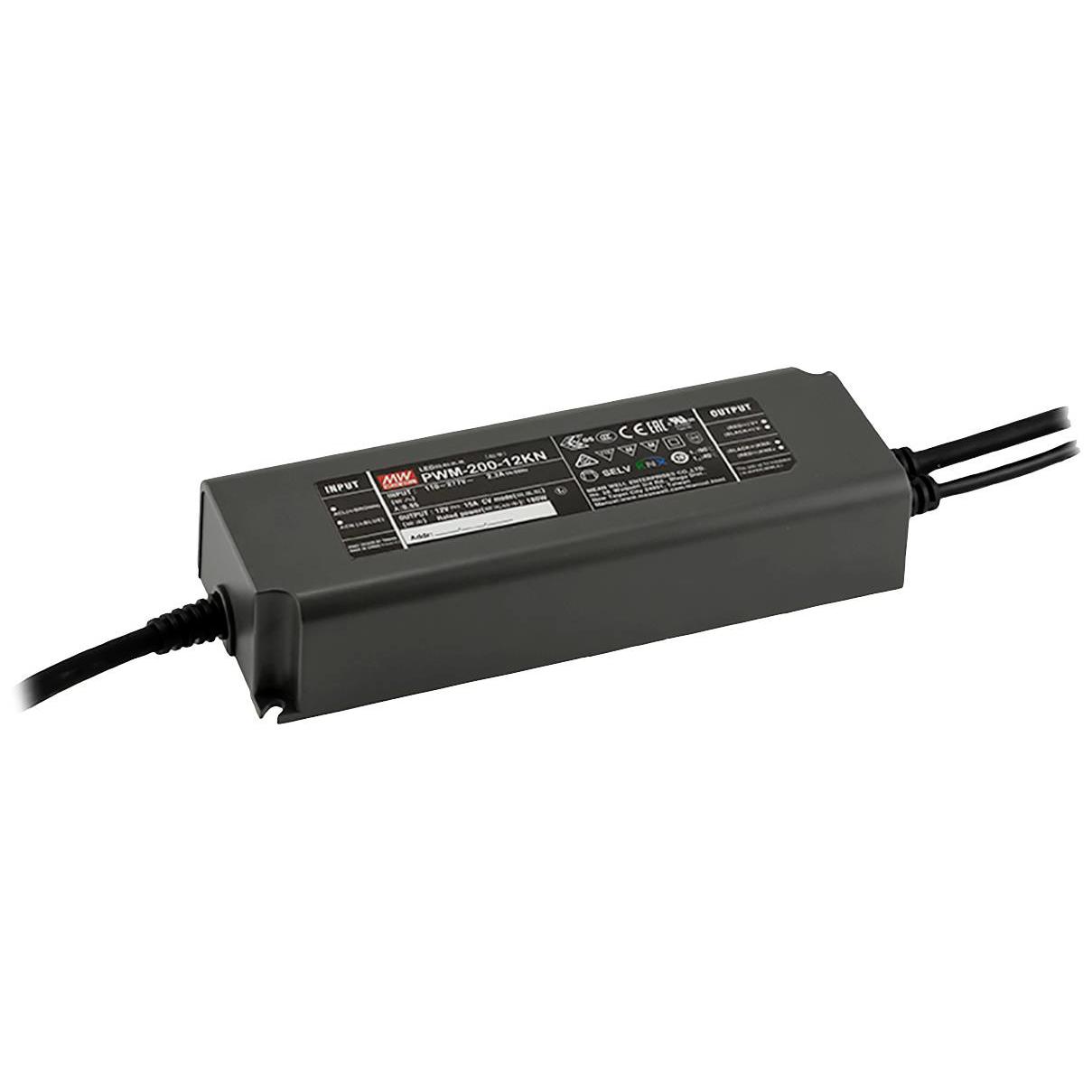

MEAN WELL PWM-200-48KN

质量

1003g

Dim

(L x W x H) 195 x 68 x 39.50 mm

Max. output current

4.17A

Output current (max.) - rounded

4.17A

Power range

200.1 W (max)

Input voltage (max.)

305V AC,431V DC

Min. input voltage

100V AC,142V DC

Output voltage (max.)

48V

Max. power

200.1W

No. of outputs

1x

Max. temperature

+85°C

Min. temperature

-40°C

Input Frequency

47 to 63 Hz

Minimum Isolation Voltage

3750 Vac

Operation

恒压

Maximum Output Power

200.1W

Output Voltage-Channel 1

48 VDC

Maximum Operating Temperature

+ 85 C

Minimum Operating Temperature

- 40 C

Mounting Styles

Desktop

Operation Mode

Constant Current (CC)

系列

PWM-200KN

终端

Wire Leaded

输出的数量

1 Output

效率

94 %

输出电压

48 V

输出类型

恒压

输出电流

4.17 A

输出功率

200.1 W

调光

带调光

标准

-

输入电压

142 to 431/100 to 305 Vdc/Vac

知识产权评级

-

高度

39.50mm

长度

195mm

宽度

68mm
