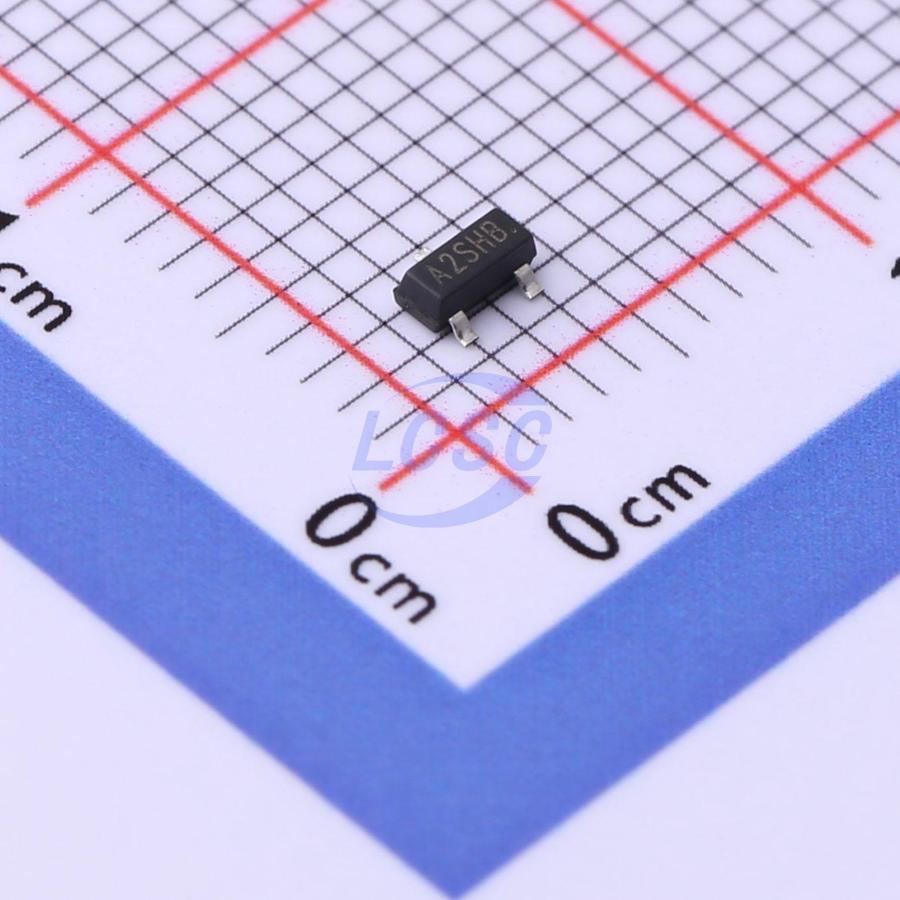

A Power microelectronics AP2302BI

RoHS

true

Drain Source Voltage (Vdss)

20V

Power Dissipation (Pd)

700mW

Drain Source On Resistance (RDS(on)@Vgs,Id)

43mΩ@4.5V,2A

Gate Threshold Voltage (Vgs(th)@Id)

660mV@250uA

Reverse Transfer Capacitance (Crss@Vds)

29pF@10V

Input Capacitance (Ciss@Vds)

280pF@10V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

2.3A
