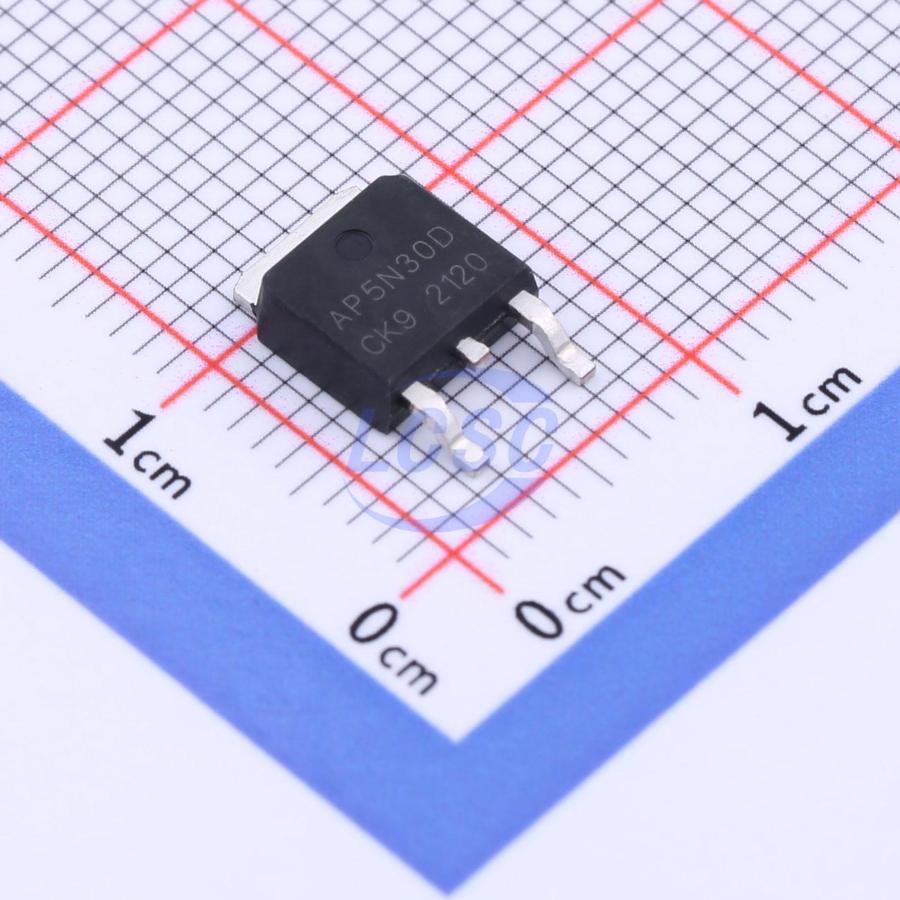

A Power microelectronics AP5N30D

RoHS

true

Drain Source Voltage (Vdss)

300V

Power Dissipation (Pd)

58.7W

Drain Source On Resistance (RDS(on)@Vgs,Id)

1.2Ω@10V,2.5A

Gate Threshold Voltage (Vgs(th)@Id)

3.2V@250uA

Reverse Transfer Capacitance (Crss@Vds)

7pF@25V

Input Capacitance (Ciss@Vds)

291pF@25V

Total Gate Charge (Qg@Vgs)

8.4nC@10V

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

5A
