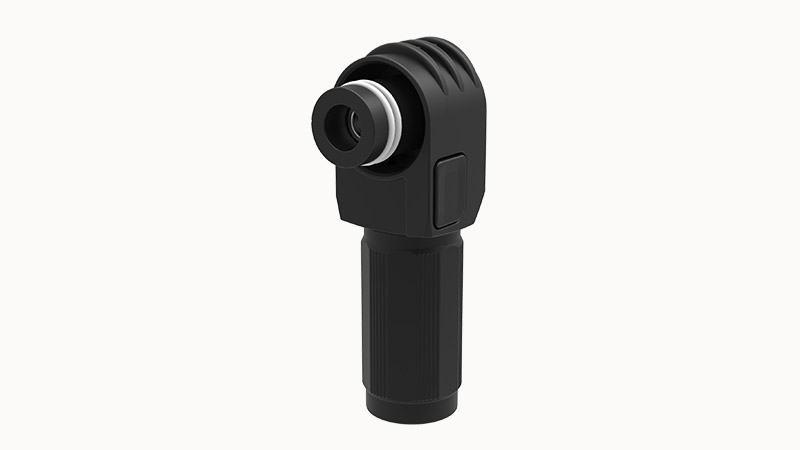

DEGSON ESP-70A-10-BK-00
- 收藏
- 对比
ESP-70A-10-BK-00
637-ESP-70A-10-BK-00
背板连接器 - 配件
--
大陆
立即发货
Energy storage connector, product range: ESP plug, color: black, wire cross section: 6 mm², rated voltage: 1000V, rated current: 70 A, connection method: crimped, contact type: hole, minimum cable diameter: 4.9mm, maximum cable diameter: 6 mm
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ESP-70A-10-BK-00详情
DEGSON ESP-70A-10-BK-00重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
O-ring material
Silicone
Cable sectional area
8AWG(10mm²）
Number of connections
1
Cable outer diameter
6.5~7.5mm
Wiring mode
Crimp
Protection grade (pair plug)
IP67
Ambient temperature (operation)
-40°C ~ +125°C
Ambient temperature (storage/transportation)
-40°C ~ +80°C
Altitude
2000m
Plugging times
100
Pullout force
>10N
Insulating material
Nylon
Clamping ring material
Silicone
Halogen-free
Compliance with standards
Environmental protection matters
REACH/RoHS compliant
Contact Materials
Copper alloy
Shell color
Black
Pollution level
3
Contact resistance
≤0.5mΩ
Insulation resistance
>5000MΩ
Rated current
70A
Insertion force
<55N
Flammability rating
UL94V-0
