DEGSON ESS-70A-10-C-OR-00
- 收藏
- 对比
ESS-70A-10-C-OR-00
637-ESS-70A-10-C-OR-00
背板连接器 - 配件
--
大陆
立即发货

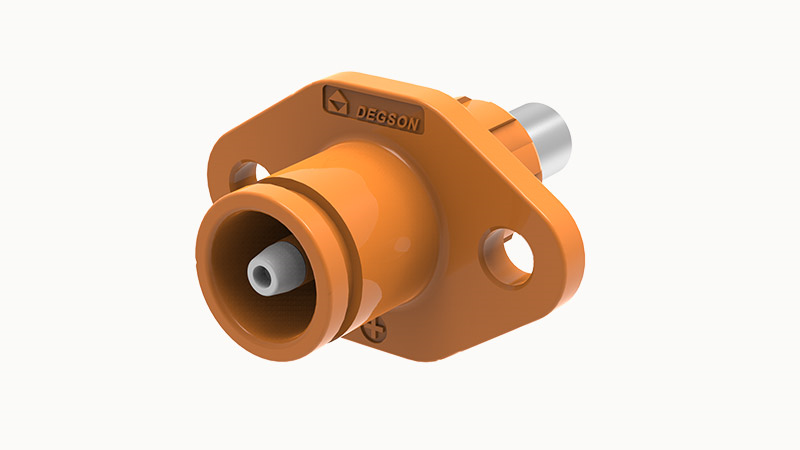

Energy storage connector, product range: ESS socket, color: orange, wire cross section: 6 mm², rated voltage: 1000V, rated current: 70 A, connection method: crimping, contact type: pin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
ESS-70A-10-C-OR-00详情
DEGSON ESS-70A-10-C-OR-00重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Wiring mode
Crimp
Protection grade (pair plug)
IP67
Ambient temperature (operation)
-40°C ~ +125°C
Ambient temperature (storage/transportation)
-40°C ~ +80°C
Altitude
2000m
Plugging times
100
Pullout force
>10N
Standard/Specification
UL4128
Insulating material
Nylon
Halogen-free
Compliance with standards
Environmental protection matters
REACH/RoHS compliant
Sealing ring material
Silicone
Contact Materials
Copper alloy
Shell color
Orange
Pollution level
3
Contact resistance
≤0.5mΩ
Insulation resistance
>5000MΩ
Rated current
70A
Insertion force
<55N
Flammability rating
UL94V-0
