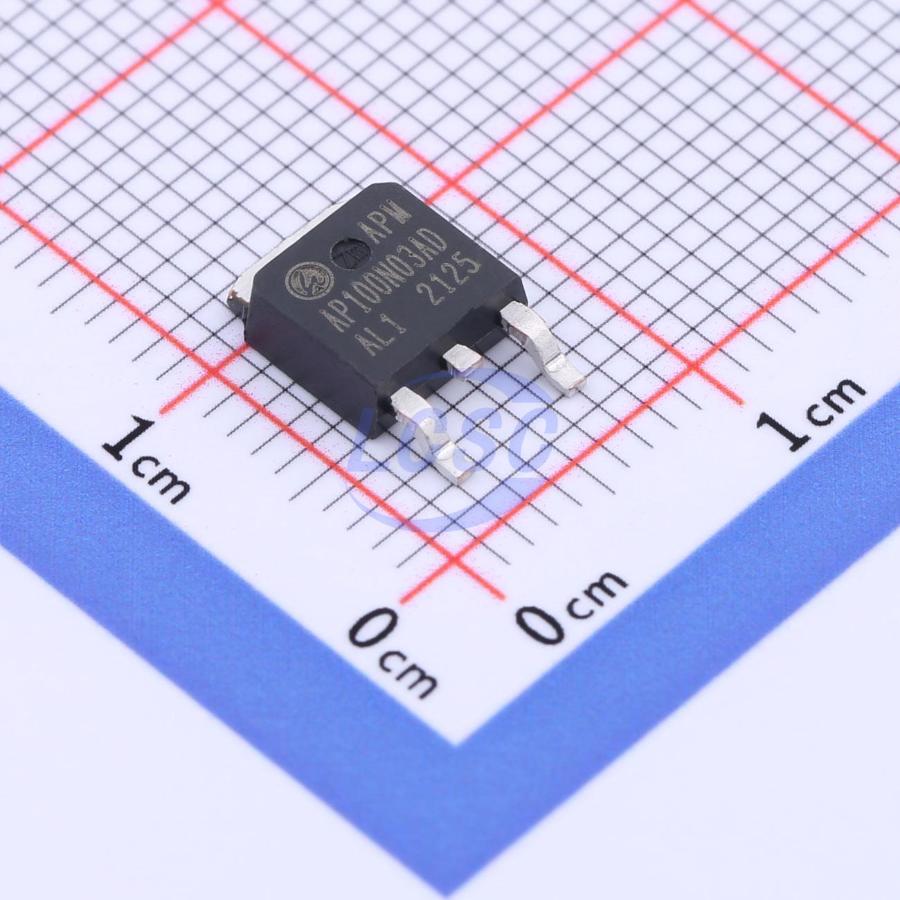

A Power microelectronics AP100N03AD

RoHS

true

Drain Source Voltage (Vdss)

30V

Drain Source On Resistance (RDS(on)@Vgs,Id)

4.8mΩ@10V,30A

Power Dissipation (Pd)

46W

Gate Threshold Voltage (Vgs(th)@Id)

1.5V@250uA

Reverse Transfer Capacitance (Crss@Vds)

215pF@15V

Input Capacitance (Ciss@Vds)

1.614nF@15V

Total Gate Charge (Qg@Vgs)

33.7nC@10V

Package

Tape & Reel (TR)

操作温度

-55℃~+175℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

100A
