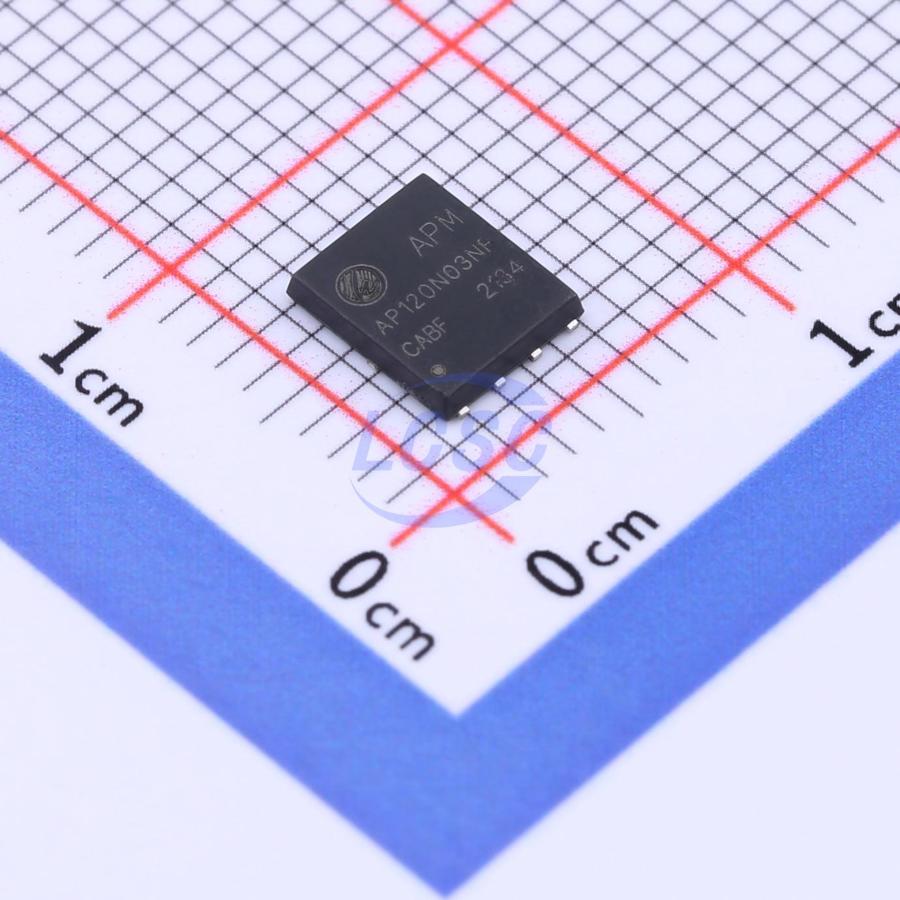

A Power microelectronics AP120N03NF

RoHS

true

Drain Source Voltage (Vdss)

30V

Drain Source On Resistance (RDS(on)@Vgs,Id)

2mΩ@10V,30A

Power Dissipation (Pd)

187W

Package

Tape & Reel (TR)

Total Gate Charge (Qg@Vgs)

56.9nC@10V

Input Capacitance (Ciss@Vds)

4.345nF@15V

Reverse Transfer Capacitance (Crss@Vds)

225pF@15V

Gate Threshold Voltage (Vgs(th)@Id)

1.5V@250uA

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

120A
