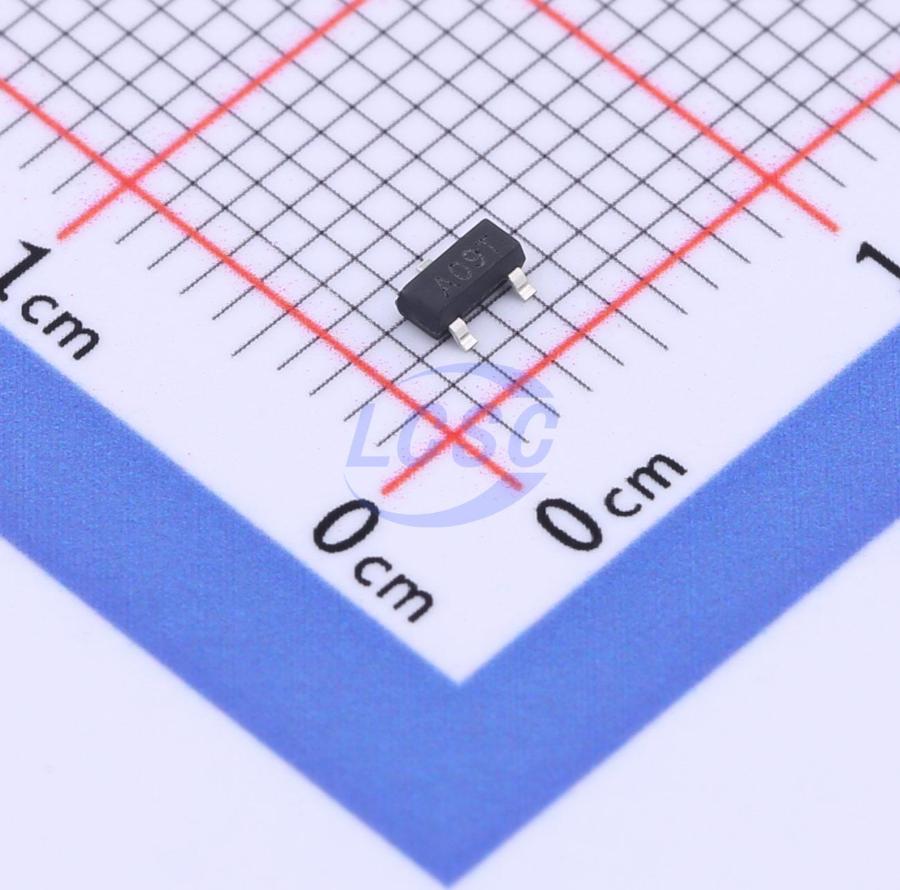

A Power microelectronics AP3400DI

RoHS

true

Drain Source Voltage (Vdss)

20V

Drain Source On Resistance (RDS(on)@Vgs,Id)

45mΩ@4.5V,3A

Power Dissipation (Pd)

770mW

Gate Threshold Voltage (Vgs(th)@Id)

600mV@250uA

Reverse Transfer Capacitance (Crss@Vds)

28pF@10V

Input Capacitance (Ciss@Vds)

184pF@10V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

3.2A
