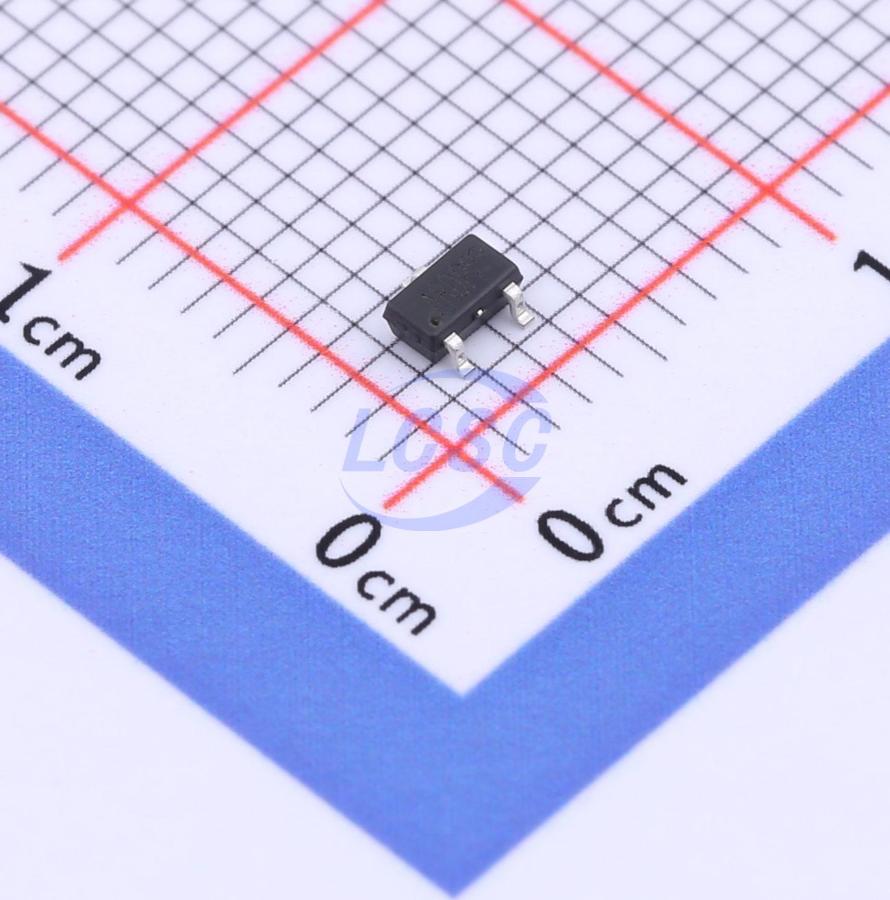

A Power microelectronics AP3N06MI

RoHS

true

Drain Source Voltage (Vdss)

60V

Drain Source On Resistance (RDS(on)@Vgs,Id)

55mΩ@10V,5A

Power Dissipation (Pd)

42W

Gate Threshold Voltage (Vgs(th)@Id)

2.5V@250uA

Reverse Transfer Capacitance (Crss@Vds)

7pF@15V

Input Capacitance (Ciss@Vds)

695pF@15V

Total Gate Charge (Qg@Vgs)

5.5nC@10V

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

3A
