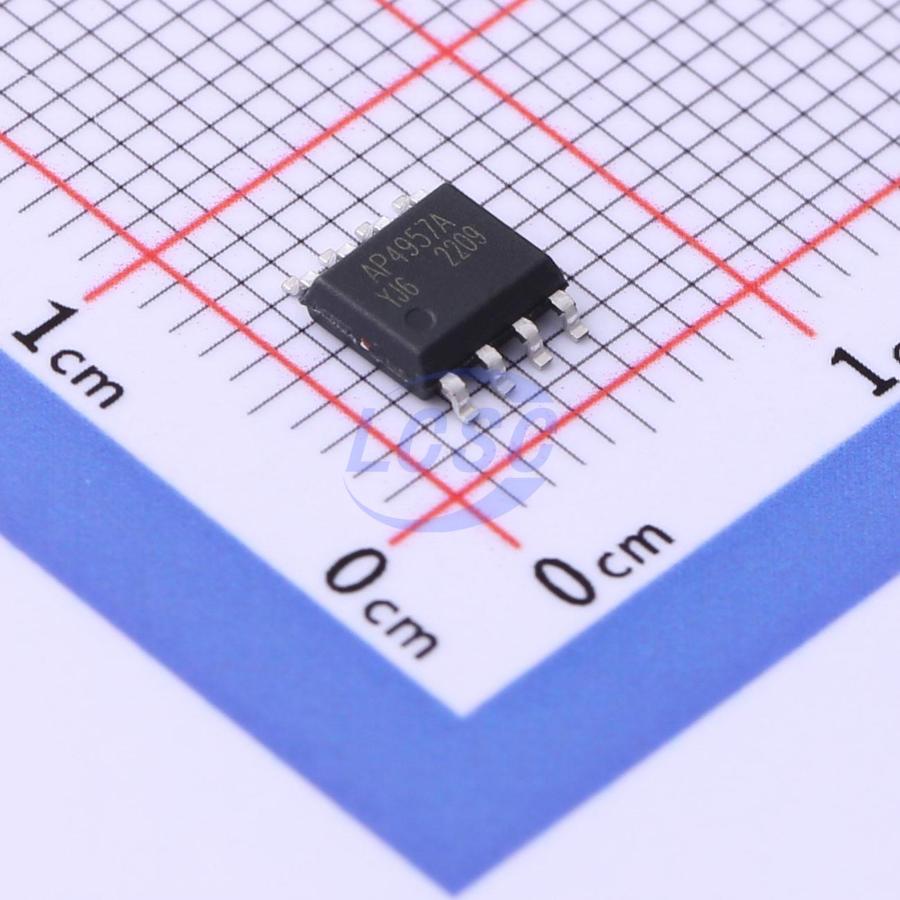

A Power microelectronics AP4957A

RoHS

true

Drain Source Voltage (Vdss)

30V

Power Dissipation (Pd)

1.5W

Drain Source On Resistance (RDS(on)@Vgs,Id)

16mΩ@10V,6A

Gate Threshold Voltage (Vgs(th)@Id)

1.6V@250uA

Reverse Transfer Capacitance (Crss@Vds)

158pF@15V

Input Capacitance (Ciss@Vds)

1.345nF@15V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

2 P-Channel

Continuous Drain Current (Id)

8.8A
