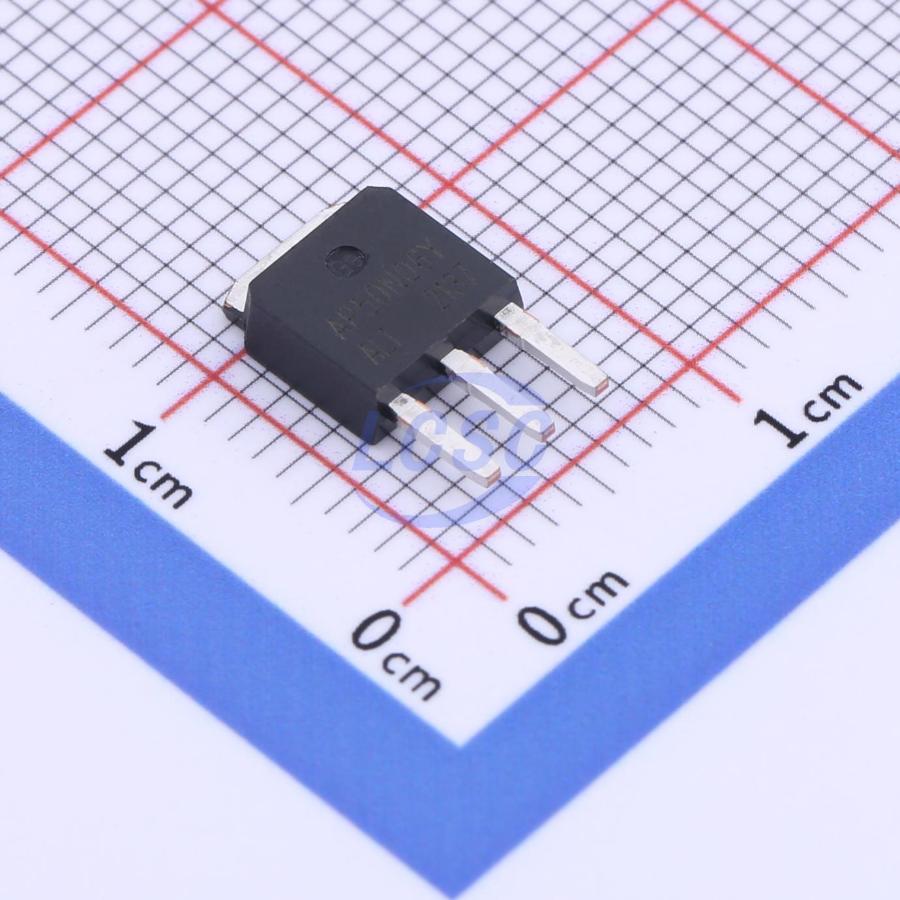

A Power microelectronics AP50N06Y

RoHS

true

Drain Source Voltage (Vdss)

60V

Drain Source On Resistance (RDS(on)@Vgs,Id)

14mΩ@10V,20A

Power Dissipation (Pd)

45W

Gate Threshold Voltage (Vgs(th)@Id)

1.8V@250uA

Reverse Transfer Capacitance (Crss@Vds)

97pF@15V

Input Capacitance (Ciss@Vds)

2.423nF@15V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tube-packed

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

50A
