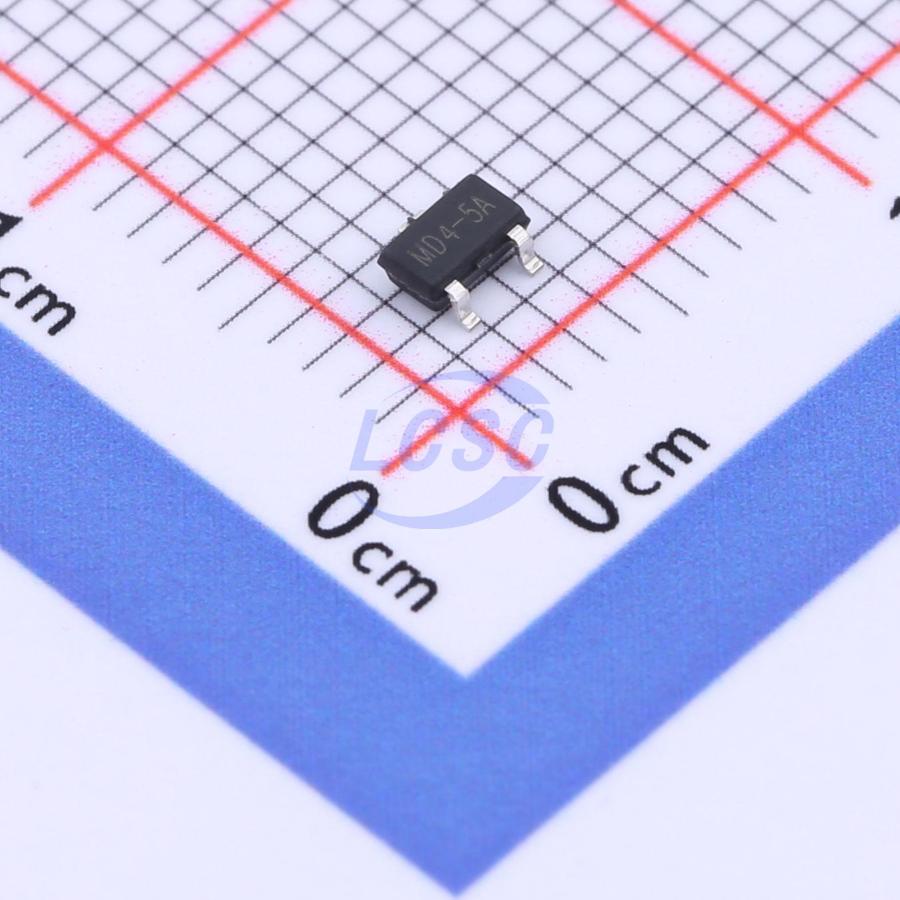

A Power microelectronics AP5N04MI

RoHS

true

Drain Source Voltage (Vdss)

40V

Power Dissipation (Pd)

1W

Drain Source On Resistance (RDS(on)@Vgs,Id)

30mΩ@10V,4A

Gate Threshold Voltage (Vgs(th)@Id)

1.5V@250uA

Reverse Transfer Capacitance (Crss@Vds)

38pF@15V

Input Capacitance (Ciss@Vds)

4.525nF@15V

Package

Tape & Reel (TR)

Total Gate Charge (Qg@Vgs)

[email protected]

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

5A
