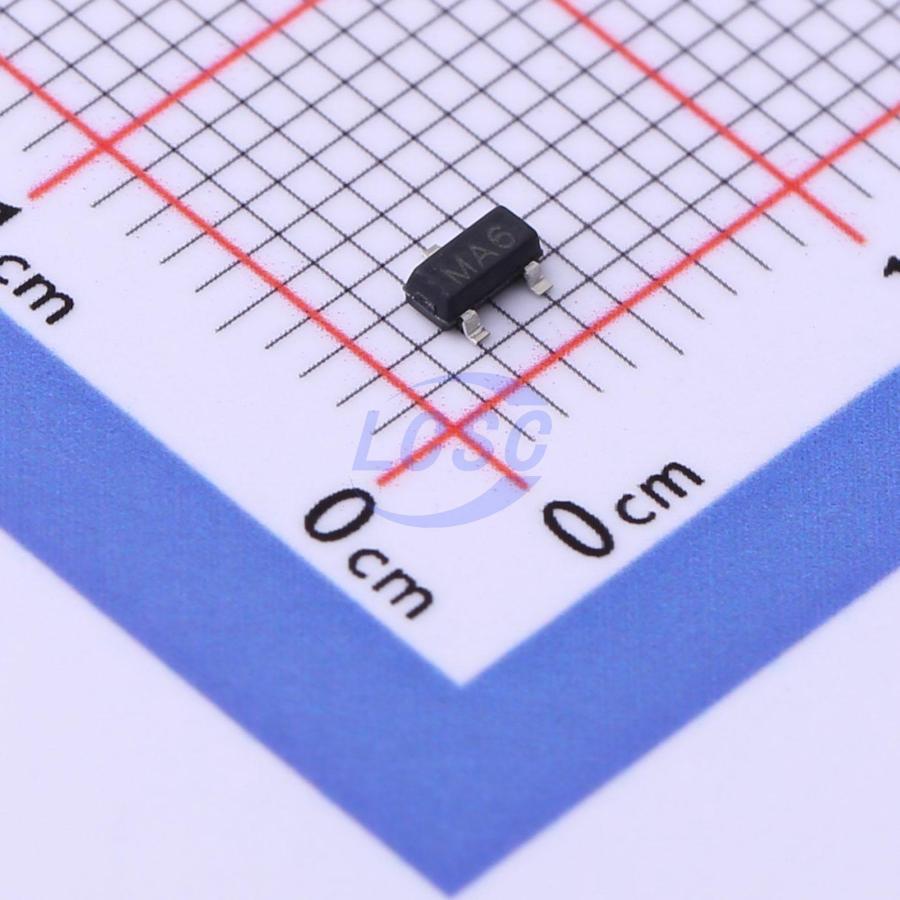

A Power microelectronics AP5N10BI

RoHS

true

Drain Source Voltage (Vdss)

100V

Power Dissipation (Pd)

3.1W

Drain Source On Resistance (RDS(on)@Vgs,Id)

105mΩ@10V,4A

Gate Threshold Voltage (Vgs(th)@Id)

1.7V@250uA

Reverse Transfer Capacitance (Crss@Vds)

3.6pF@50V

Input Capacitance (Ciss@Vds)

182pF@50V

Total Gate Charge (Qg@Vgs)

3.57nC@10V

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

5A
