Nexperia USA Inc. GAN190-650EBEZ

安装类型

Surface Mount, Wettable Flank

包装/外壳

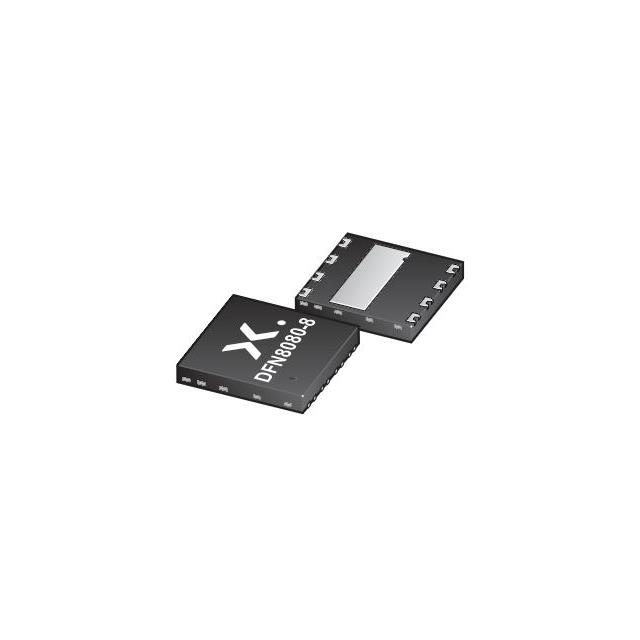

8-VDFN Exposed Pad

供应商器件包装

DFN8080-8

厂商

Nexperia USA Inc.

Current - Continuous Drain (Id) @ 25℃

11.5A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

6V

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

2.5V @ 12.2mA

Power Dissipation (Max)

125W (Tc)

Base Product Number

GAN190

包装

Tape & Reel (TR)

操作温度

-55°C ~ 150°C (TJ)

零件状态

活跃

场效应管类型

N-Channel

Rds On(Max)@Id,Vgs

190mOhm @ 3.9A, 6V

输入电容(Ciss)(Max)@Vds

96 pF @ 400 V

门极电荷(Qg)(最大)@Vgs

2.8 nC @ 6 V

漏源电压 (Vdss)

650 V

Vgs（最大值）

+7V, -1.4V
