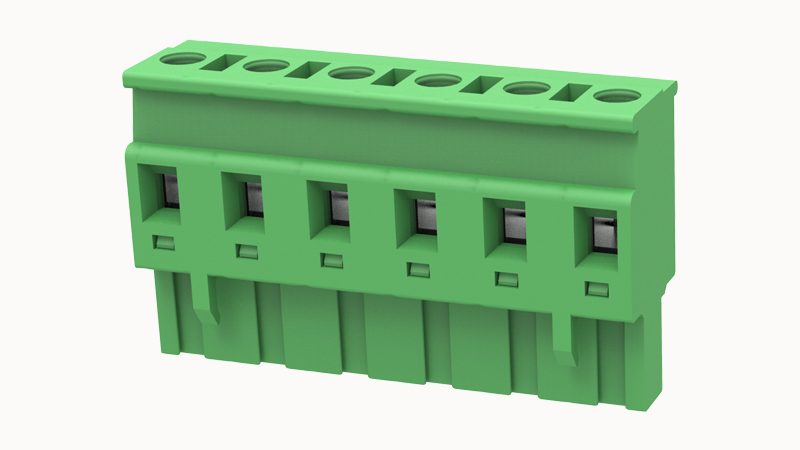

DEGSON 2EDGKA-7.5-06P

Conductor cross section solid

1.0~2.5mm²

Conductor cross section flexible

1.0~2.5mm²

AWG

28~12AWG

Torque

0.5N.m

Strip length

7mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Products weight (without packaging)

15.216

Packing unit

330

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

6

Screwdriver

Slotted screwdriver

Connection direction

90°

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

400V

Number of rows

1

螺距

7.5mm

Rated current

18A

screw thread

M3

Connection method

Screw connection

Rated voltage

400V

Flammability rating

UL94V-0
